Testing a relay properly is one of the fastest ways to diagnose control faults, reduce unplanned downtime, and avoid replacing good components unnecessarily. In a real electrical system, a relay may fail because of a damaged coil, worn contacts, heat stress, wiring mistakes, contamination, overload, or control-side problems outside the relay itself. That is why a good relay test does not stop at “does it click?” A complete relay test checks coil condition, contact behavior, switching response, load-side performance, and application fit.
This is especially important now because maintenance strategies in 2025 are increasingly moving toward condition-based and predictive approaches, with more emphasis on faster fault isolation and smarter troubleshooting in industrial systems. Recent 2025 maintenance trend coverage points to broader use of data-driven diagnostics and reduced tolerance for avoidable component replacement, which makes disciplined relay testing more valuable in modern operations.
A relay often gets blamed whenever a load does not turn on, but many apparent relay failures are actually caused by missing control voltage, incorrect socket wiring, overloaded contacts, coil suppression problems, or load-side faults. Replacing the relay without testing can waste time and conceal the real problem. A better approach is to test the relay systematically and separate three questions:
Is the relay coil or input responding correctly?
Are the relay contacts or output stage changing state correctly?
Is the relay actually suitable for the load and operating conditions?
That method is important because different relay technologies fail differently. A mechanical relay may develop contact wear or coil damage. Solid State Relays may fail short or leak unexpectedly under stress. Optocoupler Relays may still show input response while the output side no longer performs correctly. Omron’s SSR guide notes that semiconductor-based relay products have different reliability and failure considerations from electromechanical devices, which is why test method must match relay type.
Before testing any relay, isolate the system when possible and confirm the circuit category. A relay may sit inside a low-voltage PLC cabinet, or it may be tied to AC mains, motor loads, heaters, or industrial power circuits. Safe testing typically requires:
Lockout or isolation where applicable
Verification that the measured circuit is de-energized before resistance checks
Correct meter category and lead condition
Awareness of stored energy in capacitors or inductive loads
Use of the relay datasheet or product markings to identify coil/input voltage and contact arrangement
If the relay is installed, the most common testing mistake is measuring through the surrounding circuit and misreading the result. For a trustworthy relay diagnosis, it is often better to test the relay out of circuit or at least verify what else is connected in parallel or series.
A basic relay test usually requires only a few tools:
Tool | What it checks during relay testing |
|---|---|
Digital multimeter | Coil resistance, continuity, voltage presence, contact state |
Bench power supply or known control source | Energizes the relay coil or input safely |
Test leads / jumpers | Temporary test wiring |
Datasheet or product label | Confirms coil voltage, terminal layout, contact form |
Clamp meter or load test setup | Verifies real output behavior under load if needed |
For more advanced relay work, technicians may also use an oscilloscope, insulation tester, thermal camera, or dedicated test fixture, especially in higher-value equipment or repetitive maintenance environments.
The most reliable way to test a relay is to follow the same sequence every time. That makes troubleshooting faster and reduces missed steps.
Before you test a relay, determine whether it is a mechanical Electromagnetic Relay, one of the Solid State Relays, or one of the Optocoupler Relays. The test method depends on that distinction. A mechanical relay is checked by coil action and contact continuity. A solid-state relay is checked by input activation and semiconductor output behavior. An optocoupler-based relay or interface module is checked for input current/voltage response and isolated output switching behavior. ABB’s relay and optocoupler interface documentation highlights that optocoupler interfaces primarily provide insulation and adaptation, while a relay output interface allows voltage adaptation and more power handling.
A visual check often reveals obvious relay problems before measurement begins. Look for:
Cracked housing
Burn marks
Melted plastic
Corroded terminals
Loose socket fit
Discoloration from overheating
Mechanical damage
Contamination or moisture ingress
If the relay is transparent, check for darkened contacts or visible debris. A burned-looking relay does not always prove failure, but it strongly suggests the relay has been stressed.
Read the label or datasheet. A relay can fail simply because the wrong control voltage was applied. The provided Huntec examples show this clearly: the ARL-2C24DLD Electromagnetic Relay uses a 24 VDC coil, the RTP-S-R-005VDC-05-Z Solid State Relays product uses a 5 V input, and the RTO-S-O family Optocoupler Relays data shows low-current input behavior intended for interface duty.
If you energize a relay with the wrong voltage, your test results will be misleading and the relay itself may be damaged.
A mechanical Electromagnetic Relay is usually the easiest relay to test because its behavior is visible in both sound and continuity.
With the relay de-energized and isolated, measure resistance across the coil terminals. A healthy relay coil typically shows a finite resistance value. If the meter reads open circuit, the relay coil may be broken. If the value is extremely low compared with expectation, the relay coil may be damaged or partially shorted. Omron’s relay technical information notes that DC-switching relay coil resistance varies with temperature, so measured resistance should be interpreted with operating condition in mind rather than treated as a fixed value under all circumstances.
Use continuity or resistance mode to test the NO and NC terminals of the relay in the de-energized state. The relay should match its labeled contact form:
NO contact: open when the relay is de-energized
NC contact: closed when the relay is de-energized
Changeover contact: common connected to NC in the rest state
Apply the correct control voltage to the relay coil. A working relay will usually produce an audible click. More importantly, the contact states should change:
NO should close
NC should open
Common should transfer to the NO side
If the relay clicks but continuity does not change, the relay contacts may be damaged, contaminated, welded, or mechanically misaligned.
A relay may still switch but perform poorly under load if contact resistance is too high. Panasonic’s relay technical information states that contact resistance is measured using a voltage-drop method and reflects contact, terminal, and spring-path resistance together. In practical field testing, if a relay contact shows unexpectedly high resistance after closure, the relay may be degraded even if it still operates mechanically.
Some relay faults appear only under load. A mechanical relay may show continuity on a meter but fail when switching a real device because the contacts are pitted or carbonized. If safe and appropriate, test the relay in a controlled load circuit to verify actual performance.
Testing Solid State Relays is different because a semiconductor relay usually does not give you an audible click or traditional contact behavior.

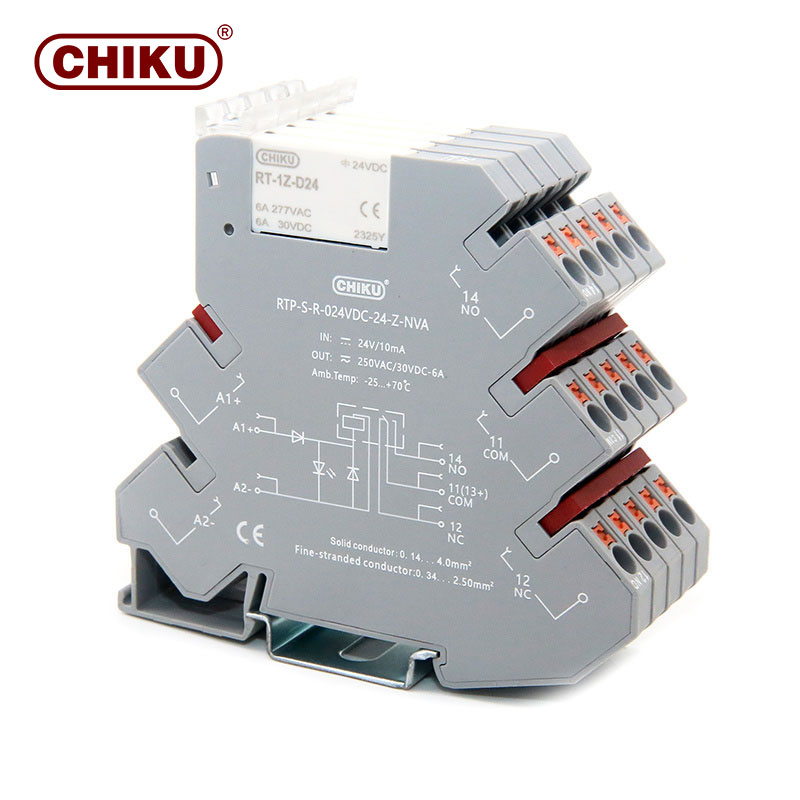

Check that the relay receives the correct input voltage or current. Many Solid State Relays use low-voltage control input. The Huntec RTP-S-R-005VDC-05-Z example lists a 5 V rated input and an input range of 4.4–6.0 V, so a technician testing that relay should first verify that the control source is actually within that window.
A solid-state relay output is not tested exactly like a dry contact. Semiconductor outputs can show off-state leakage, and a meter may display misleading values if the relay is tested in-circuit or without the proper load context. Omron’s SSR guide emphasizes that SSRs use semiconductors and therefore differ fundamentally from mechanical contact devices in how they switch and fail.
A failed solid-state relay often presents in one of two ways:
The relay output never turns on despite valid input
The relay output remains effectively on or leaks enough current to affect the load even when the input is removed
That second case is especially important because users often assume any apparent output when off means a bad relay, but some leakage is intrinsic to many Solid State Relays. The key is whether the leakage is normal for the device or excessive relative to the application.
A solid-state relay may pass a bench test but still fail in operation because of inadequate thermal conditions. If a relay is hot in service, check heatsinking, ambient temperature, load type, and current margin, not just control input.
Optocoupler Relays and optocoupler interface modules require a slightly different relay mindset. The purpose of this relay category is often compact isolation and adaptation between logic-level control and field-side circuits.
Test whether the relay input receives the correct voltage and current. The Huntec RTO-S-O series data indicates low input current and fast switching characteristics, which means a weak control signal or wiring issue can prevent the relay from operating correctly even though the device itself is healthy.
The output side of an Optocoupler Relays device should be checked according to its design type. Do not assume it behaves like a mechanical relay contact unless the product specifically does. Vishay’s optocoupler application note explains that optocouplers are used to isolate signals for protection and safety between electrically noisy or hazardous environments, and proper interfacing of the optocoupler is critical to correct operation.
In interface applications, a relay may not be “bad” but simply mismatched. If the load or sensing threshold is not aligned with the output behavior of the relay, the system may behave as if the relay has failed. This matters especially in PLC and signal interface designs.
Symptom | Likely relay-related cause | What to test first |
|---|---|---|
Load never turns on | No control voltage, open coil, failed SSR input, wrong wiring | Input/coil voltage, coil resistance, terminal mapping |
Relay clicks but load stays off | Damaged contacts, wrong contact terminals, load-side open circuit | Continuity across switched contacts, load wiring |
Relay stays on | Welded contacts in mechanical relay, failed-short SSR, wiring error | Contact state with input removed, output leakage vs normal spec |
Intermittent operation | Loose socket, contamination, marginal control voltage, overheating | Socket fit, supply stability, temperature |
PLC output works but field device does not | Interface mismatch, inadequate output capacity, isolation issue | Output type, current requirement, module compatibility |
The supplied Huntec product data helps illustrate why relay test steps must match product type. The ARL-2C24DLD Electromagnetic Relay includes LED indication and freewheeling diode protection, so a technician should confirm proper polarity and coil supply when testing. The RTP-S-R-005VDC-05-Z Solid State Relays product uses a defined low-voltage input window, so an out-of-range control signal can mimic relay failure. The RTO-S-O Optocoupler Relays entry shows very fast response and a 500 mA output class, which means its relay test should focus on signal integrity, correct interfacing, and whether the actual load is within the module’s intended range.
Industrial maintenance is increasingly expected to be faster, more evidence-based, and less wasteful. Recent 2025 predictive maintenance and maintenance operations trend reporting emphasizes real-time asset insight, explainable diagnostics, and reduced unnecessary part replacement. In that environment, disciplined relay testing becomes more important because it helps distinguish real relay failure from wiring faults, control issues, and application mismatch.
That trend also aligns with broader industrial automation growth. As control cabinets become denser and systems more digital, the relay is still a core interface component, but it must now be tested with greater awareness of input thresholds, isolation behavior, and load compatibility, especially in Solid State Relays and Optocoupler Relays applications.
To test a relay with a multimeter, first isolate the relay, identify the coil or input terminals, measure coil resistance or input condition, and then check contact continuity or output state before and after energizing the relay. For a mechanical relay, continuity across NO and NC contacts is the key check. For Solid State Relays, you must verify both the control input and the output behavior appropriate to semiconductor switching.
A relay may be bad if the coil is open, the input never activates correctly, the contacts do not change state, contact resistance is abnormally high, the output is stuck on or off, or the relay overheats in normal operation. The exact symptoms depend on whether the relay is an Electromagnetic Relay, one of the Solid State Relays, or one of the Optocoupler Relays.
Yes. A mechanical relay can click and still be faulty if the contacts are burned, contaminated, welded, or too resistive under load. That is why a relay should be tested for actual continuity and, when appropriate, verified under load.
Test Solid State Relays by confirming the correct input voltage or current, then checking whether the output switches properly under the expected conditions. Because a solid-state relay can have off-state leakage and different failure behavior than a contact relay, results must be interpreted differently from a mechanical device.
Test Optocoupler Relays by confirming input-side activation, then verifying that the isolated output responds correctly for the device’s intended interface function. Since this type of relay is often used for insulation and signal adaptation, both the control threshold and output compatibility matter.
The supplied Huntec information suggests that different relay categories require different test priorities: the Electromagnetic Relay should be checked for coil action and contact state, the Solid State Relays product should be checked for proper 5 V input operation and semiconductor output behavior, and the Optocoupler Relays product should be checked for low-current input response and correct isolated switching behavior.
The best way to test a relay for proper functionality is to match the test method to the relay type. A mechanical Electromagnetic Relay is tested by coil resistance, actuation, and contact continuity. Solid State Relays are tested by input activation and semiconductor output behavior. Optocoupler Relays are tested by control-side response, isolation function, and correct output interfacing. If you test the relay systematically rather than guessing from symptoms, you will diagnose faults faster, replace fewer good parts, and make better maintenance decisions.
