Faster panel wiring can cut assembly time, but the wrong connection method may create new maintenance issues.
Push-in and screw terminals each offer different benefits for a DIN Rail Terminal Block installation.
This article compares wiring speed, tools, reliability, conductor compatibility, and buying factors for control panels.
For buyers focused on panel wiring speed, connection technology matters. It affects every conductor installed across the panel.
A push in DIN rail terminal block uses spring force to secure the conductor. A screw DIN rail terminal block uses mechanical screw clamping. Both can provide stable electrical connections when correctly specified and installed.
The main differences appear during assembly, inspection, maintenance, and future modifications.
Push-in terminals can reduce repetitive installation steps. Prepared rigid conductors can often be inserted directly into the connection point.
This removes the repeated screw-tightening operation. That advantage becomes significant across panels containing hundreds of conductors.
Screw terminals require conductor placement and mechanical tightening. The technician must also apply an appropriate tightening procedure.
The real advantage depends on the entire wiring cycle. Wire stripping, ferrule preparation, labeling, testing, and rework still consume labor.
Tool handling affects production efficiency more than many buyers expect.
Push-in terminals can allow direct insertion for compatible conductors. Flexible wires may still require a tool or ferrule, depending on terminal design.
Screw terminals require a suitable screwdriver. Operators must repeatedly engage and tighten each terminal.
Reducing these repeated motions can improve productivity in high-volume panel assembly.
Spring terminals maintain contact through continuous spring force. This can be useful in machinery exposed to vibration or thermal cycling.
HUNTEC describes its RPV spring terminal range as suitable for vibration-sensitive industrial and control applications. The family includes push-in models across several conductor capacities.
Screw terminals also provide robust connections when tightened correctly. Performance depends on product design, installation quality, conductor preparation, and the relevant certification.
Neither technology should be selected from connection style alone.
A spring connection does not depend on manually applied screw torque. This reduces one installation variable during repetitive assembly.
A screw terminal depends more directly on correct tightening. Maintenance procedures may also include connection inspection under specific plant policies.
This difference matters when buyers calculate lifetime labor.
Initial purchase price tells only part of the story.
The fastest terminal is useless when it does not accept your conductors.
Check rigid wire, flexible wire, ferrules, AWG range, conductor cross-section, and stripping length before selection.
HUNTEC’s product selector lets buyers filter terminals by conductor capacity, AWG, thickness, rated current, and rated voltage.
Factor | Push-In Terminal Block | Screw Terminal Block |
|---|---|---|
Wiring speed | Fast for repetitive compatible wiring | More manual termination steps |
Tool use | Often reduced | Screwdriver required |
Connection method | Spring force | Screw clamp |
Torque dependency | Low | Correct tightening matters |
Vibration applications | Strong option in suitable designs | Reliable when properly installed |
Maintenance | Less focus on screw torque | Inspection may include screw connections |
Best fit | High-volume automated panel work | Established and varied panel designs |
Buyer priority | Labor efficiency | Familiarity and configuration flexibility |
Tip：Measure wiring time across 50–100 connections before comparing terminal prices.
Understanding the mechanism helps buyers compare installation speed more accurately.
A push-in terminal uses a spring element to maintain conductor contact.
The conductor enters the connection point and engages the spring mechanism. The spring then maintains contact pressure.
HUNTEC’s RPV family uses push-in connections. For example, RPV 2.5 is listed at 800 V and 24 A. RPV 4 is listed at 800 V and 32 A.
Buyers can review the RPV Spring Terminal Block range for available conductor sizes and configurations.
A screw terminal secures the conductor through mechanical clamping.
The installer inserts the prepared conductor and tightens the terminal screw. Correct torque supports a stable connection.
HUNTEC’s RTB range includes feed-through, grounding, multi-contact, and double-layer screw configurations.
The range is available through the RTB Screw Terminal Block category.
Every extra movement matters during repetitive panel assembly.
Push-in wiring may reduce screwdriver handling and tightening cycles. Screw connections add a deliberate mechanical fastening step.
That difference appears small for ten terminals. It becomes more important across several hundred connections.
Wiring speed should be measured across the complete assembly process.
Do not compare conductor insertion alone.
Measure stripping, ferrule preparation, insertion, tightening, checking, labeling, testing, and correction.
A fast wiring DIN rail terminal block should reduce total assembly effort, not just one motion.
PLC cabinets and industrial automation panels may contain many repeated terminal connections.
A few seconds saved per connection can accumulate across large production batches. This makes push-in technology attractive for standardized OEM assembly.
The economic benefit becomes clearer when the same technicians build similar panels every day.
Initial wiring is not the only labor cost.
Panels may require changes during commissioning, debugging, expansion, or field maintenance.
Buyers should test conductor removal and reconnection as well. Dense DIN rail layouts can make accessibility especially important.
Use equal conductor lengths and identical preparation methods. Test both technologies with the same technicians.
Record installation time, removal time, connection errors, and inspection effort. Repeat the test several times.
This gives procurement teams real data for their own production environment.
Tip：Avoid universal claims such as “50% faster” unless your own validated test supports them.
Faster assembly should never replace basic electrical engineering requirements.
Connection technology does not determine electrical capacity by itself.
HUNTEC offers push-in and screw products across different ratings. For example, the RUK 6N screw terminal is listed at 800 V and 57 A. Its specified rigid conductor range reaches 0.2–10 mm².
The RPI2.5 push-in model is listed at 1000 V and 24 A. Its product page specifies a 0.14–2.5 mm² connection range.
Always compare equivalent applications.
Spring terminals continually apply mechanical force to the conductor.
Screw terminals rely on a tightened mechanical clamping system.
Both designs can deliver dependable conductivity. Their suitability depends on vibration, temperature changes, conductor construction, and product standards.
Panel space can be as important as wiring speed.
Terminal thickness influences how many circuits fit on one rail. Multi-level and multi-contact designs can further reduce cabinet space.
HUNTEC’s selector includes terminal thickness as a filter. Available values cover multiple sizes for different panel layouts.
Control panels rarely need feed-through terminals alone.
Projects may require PE terminals, multi-level connections, bridging, multi-contact terminals, or distribution functions.
The RTB screw range includes grounding and double-layer designs. This makes system-level comparison more useful than comparing one terminal model.
Tip：Compare equivalent conductor sizes and terminal functions before comparing unit prices.
The correct choice changes with the panel environment.
Push-in terminals are strong candidates for repetitive production.
They can reduce screwdriver handling and manual tightening operations. This supports faster assembly when conductor preparation is standardized.
Machine builders producing similar cabinets repeatedly may gain the most value.
Spring-force terminals can suit equipment exposed to vibration.
Applications include automated machinery, manufacturing equipment, transport systems, and industrial control cabinets.
Product-specific testing and certifications should still guide final approval.
Screw terminals remain familiar to many electricians and maintenance teams.
They may fit projects already standardized around screw terminal families. Existing accessories, drawings, and maintenance procedures may favor continuity.
Changing technology should provide a measurable benefit.
Do not assume larger conductors automatically require screw terminals.
Check the exact current, voltage, conductor range, rail format, and terminal geometry.
Select the terminal model first from verified requirements. Then compare connection technologies within that range.
A purchasing decision should begin with system requirements.
Confirm whether the project uses rigid, flexible, or ferruled conductors.
Record AWG or mm² size and required stripping length. Also confirm whether technicians already use automatic ferrule preparation.
Conductor preparation can change the expected labor advantage.
Rated current and voltage must meet the circuit requirements.
Do not choose a connection method first and force specifications around it.
HUNTEC provides a broader DIN rail terminal block product selector covering push-in, spring, and screw terminal families.
Check terminal thickness, number of connections, and layer count.
Also review grounding needs, jumpers, markers, end plates, and DIN rail compatibility.
The terminal must fit the complete cabinet architecture.
For B2B sourcing, total installed cost is more useful than unit price.
A practical calculation should include:
Terminal cost + wire preparation + assembly labor + tools + inspection + rework + maintenance
A slightly higher terminal price may still reduce total production cost. A cheaper terminal may remain better when labor differences are small.
Tip：Ask production engineers and purchasing teams to evaluate the same cost model.
HUNTEC/CHIKU currently offers multiple spring and screw terminal families. The product portfolio includes RPV, RPI, RNS, RST, RTB, RUK, RUT, and RUG series.

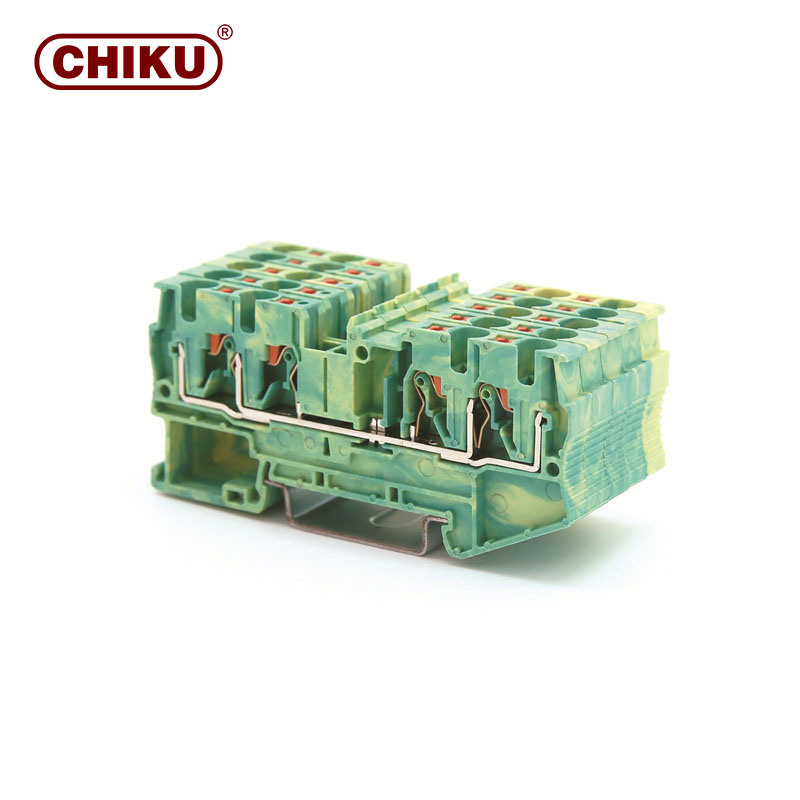

The RPV series provides direct push-in connections across several conductor capacities.
Current RPV listings include 2.5, 4, and 16 mm²-class products. Ratings vary by model.
RPI also covers push-in applications. RPI10, for example, is listed at 1000 V and 57 A.
HUNTEC also maintains broad screw-terminal families.

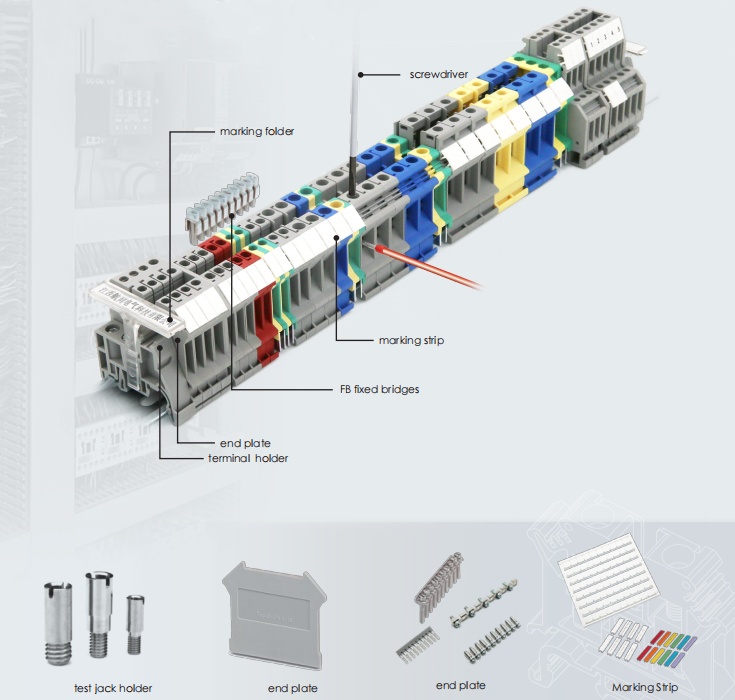

RTB includes feed-through, grounding, multi-contact, and double-layer options. RUK provides further conductor and current ranges.
The RUK 6N model uses screw connection technology and supports 20–8 AWG according to its current product page.
Buyers can review the RUK 6N DIN Rail Terminal Block as one screw-terminal example.
Do not select a product family from connection method alone.
Provide conductor size, current, voltage, connection count, grounding requirements, rail type, and available panel space.
That information lets suppliers narrow the suitable models much faster.
The final decision should reflect production conditions.
Push-in technology deserves closer consideration when the project has high connection counts, repetitive assembly, standardized wire preparation, limited tool access, or strong pressure to reduce panel wiring labor.
It can also suit vibration-sensitive machinery when the selected product meets the required standards.
Screw terminals remain practical for established panel standards and familiar maintenance procedures.
They also make sense when a required conductor range or terminal configuration is already available in an approved screw family.
Avoid changing technology simply because push-in sounds newer.
Ask the supplier about conductor range, rigid and flexible wire compatibility, rated current, rated voltage, terminal thickness, DIN rail type, PE versions, multi-level models, accessories, and applicable certifications.
HUNTEC’s Download Center currently provides product brochures, drawings, and certification categories including CE, UL, CQC, REACH, RoHS, and TUV materials. Exact approvals should be checked for the specific terminal model.
HUNTEC offers push-in and screw DIN rail terminal blocks for different panel wiring needs.
Push-in terminals support faster repetitive wiring, while screw terminals provide familiar installation and flexible configurations.
Buyers should compare conductor size, ratings, panel space, and maintenance needs before selection. HUNTEC also provides product selection and technical support.
A: A DIN Rail Terminal Block connects and organizes panel wiring on standard DIN rails.
A: A push in DIN rail terminal block usually reduces repetitive tightening during high-volume panel wiring.
A: A screw DIN Rail Terminal Block suits familiar maintenance practices and established control panel standards.
A: Unit cost may vary, but faster wiring can reduce total assembly labor.
A: Check conductor size, ferrules, stripping length, and insertion method.
