RES-C-25-M

High Voltage and Current Ratings:
1000V and 120A.

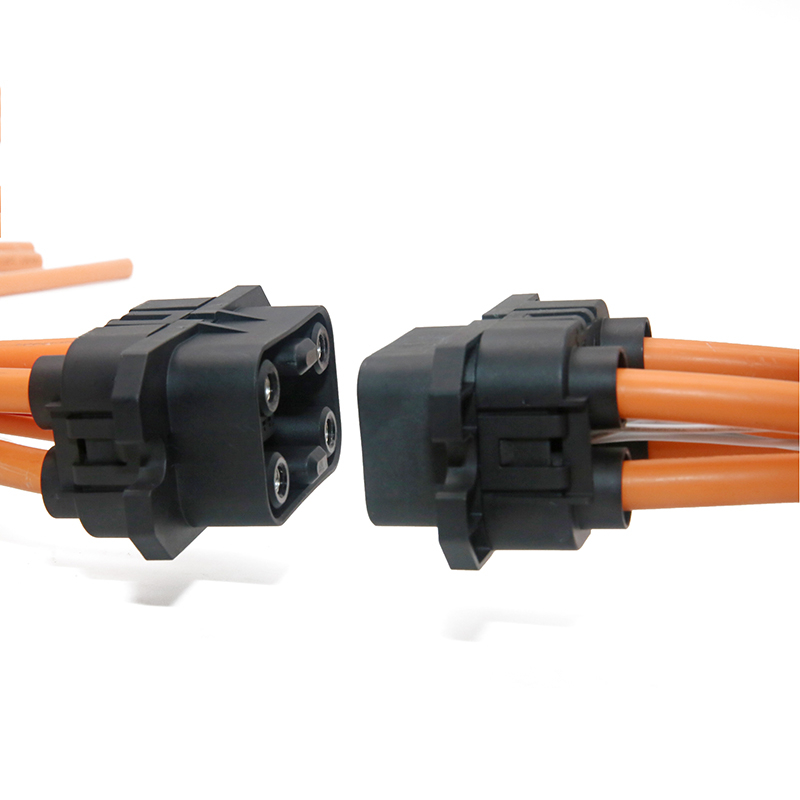

Easy installation:
This is a floating blind connector, Blind connect supported.
Usage:
Main for battery.

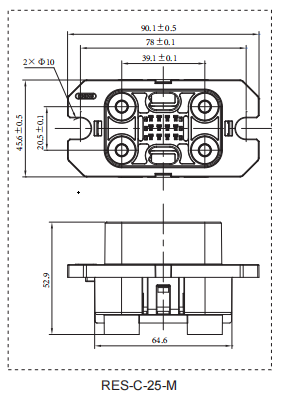

RES-C-25-M male side of device end

Material: PA+Brass with silver plating
Operating Temperature Range: -40°C to +125°C
Protection Level: IP20
Certification: UL, CE

RES Energy Storage Connector is constructed from high-grade copper pin, ensuring superior electrical conductivity and strength. The housing is made from durable, flame-retardant plastic materials that provide excellent insulation and protection. Additionally, the connectors are coated with corrosion-resistant finishes to enhance longevity and reliability in various environmental conditions.
