Small connector failures can stop large production systems.
Are you choosing the right connection solution for your machines?
A Heavy Duty Connector provides reliable power and signal transmission in industrial environments.
This guide explains key specifications, materials, protection levels, and selection factors before purchase.
A Heavy Duty Connector is an industrial electrical connection solution designed to transfer power, signals, and control data between different equipment components. Compared with standard connectors, it is built for applications that require stronger mechanical protection, higher reliability, and better resistance against harsh operating conditions.
In industrial automation systems, these connectors are commonly used between machines, control cabinets, motors, sensors, and production equipment. They help create a secure connection point that allows equipment to be installed, maintained, and upgraded more efficiently. A modular connector structure also makes wiring management easier because different contact modules can be arranged according to specific application needs.
For example, automated production lines often require connectors that can handle continuous operation, frequent vibration, and repeated connection cycles. A suitable Heavy Duty Connector helps maintain stable electrical performance while reducing the risk of loose connections or unexpected equipment shutdowns.

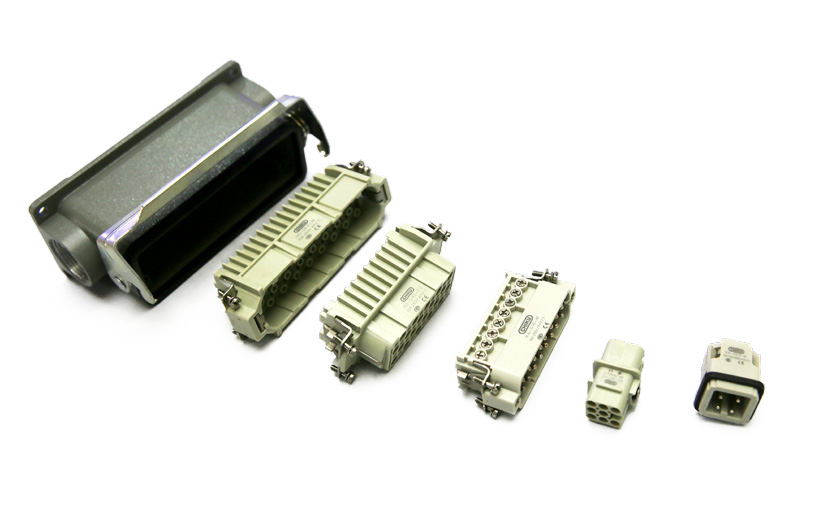

A typical industrial connector system consists of several important parts:
Component | Function |
|---|---|
Housing | Protects internal parts from impact, dust, and moisture |
Insert | Supports contact arrangement and electrical separation |
Contact | Transfers power or signals |
Cable gland | Protects cable entry and reduces mechanical stress |
Locking system | Maintains a secure connection during operation |
Each component influences the overall reliability of the connector. A strong housing improves protection, while high-quality contacts help maintain stable electrical performance over long operating periods.
For industrial buyers, selecting a complete connector system that matches the equipment environment is more important than choosing a single specification.
CHIKU Contact provides industrial connection solutions for automation equipment, electrical systems, and customized application requirements.
Industrial automation environments create higher demands on electrical connections. Unlike office or commercial applications, factory equipment often operates under vibration, mechanical movement, dust exposure, humidity, and temperature changes.
Traditional connectors may experience problems in these conditions. Loose connections, poor sealing, or insufficient mechanical protection can lead to signal interruptions, power failures, and increased maintenance requirements.
A reliable industrial Heavy Duty Connector is designed to solve these challenges by providing stronger protection and more stable connection performance. Features such as rugged housings, secure locking structures, and protected contact systems help connectors maintain performance during long-term operation.
Different applications also create different requirements. A connector used on a robotic arm needs strong vibration resistance, while a connector installed in an outdoor energy system may require better environmental protection. Therefore, buyers should always evaluate the actual working conditions before selecting a product.
Tip： Before purchasing, identify the installation environment first because operating conditions directly affect connector selection.
Understanding connector structure helps buyers evaluate product quality and suitability more effectively.

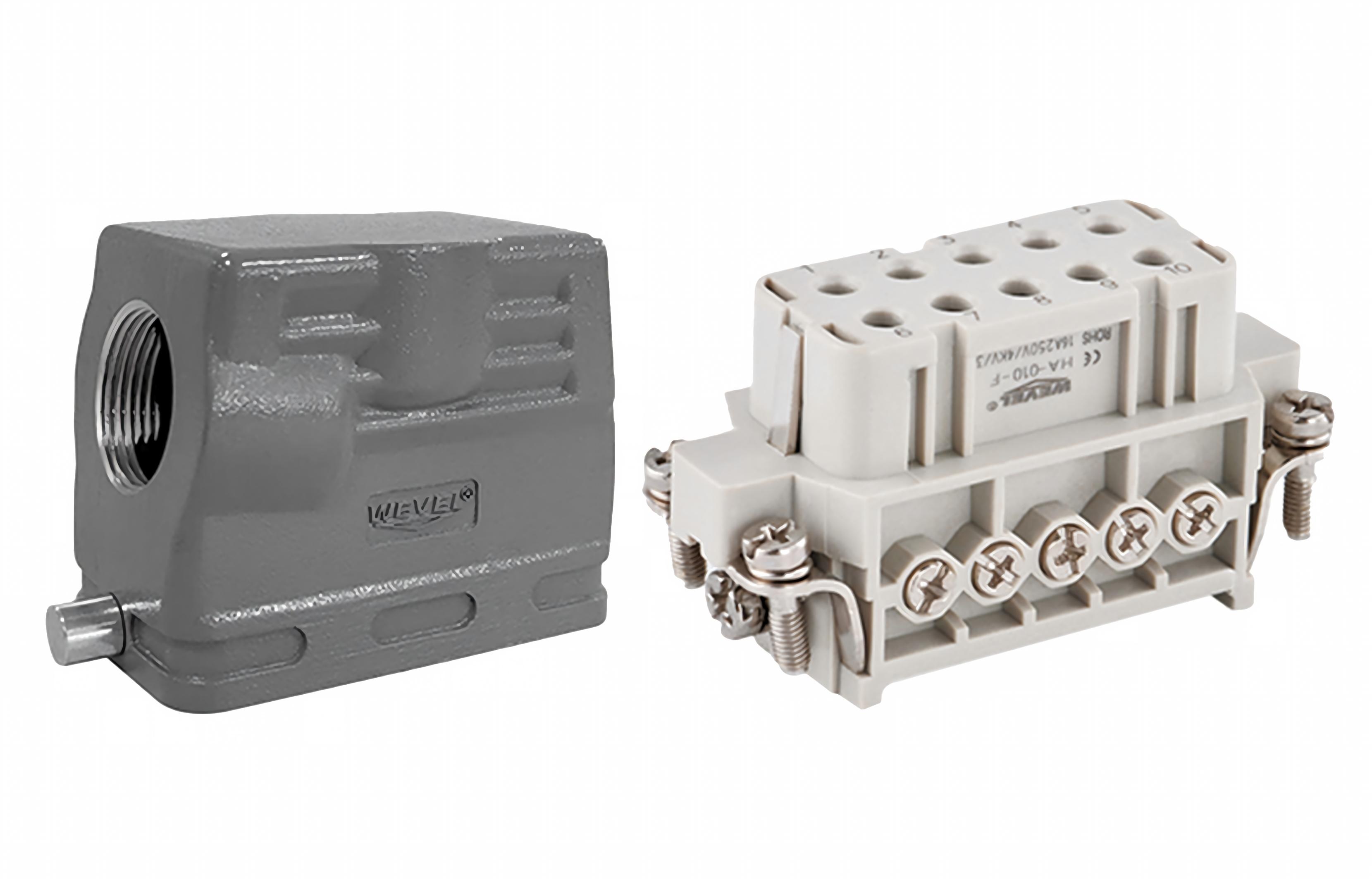

The housing is the external protective layer of a connector. Industrial connectors commonly use materials such as die-cast aluminum or engineering plastics. Aluminum housings usually provide excellent mechanical strength and impact resistance, making them suitable for heavy machinery and harsh environments. Plastic housings are lighter and can provide good insulation performance for specific applications.
The internal insert and contacts determine electrical performance. The insert keeps contacts organized and prevents unwanted contact between circuits. The contacts are responsible for transmitting current and signals, so their material quality, design, and contact resistance directly influence reliability.
Another important part is the locking and cable protection system. Industrial equipment may experience constant vibration or movement, so the connector needs a secure locking mechanism to prevent accidental separation. Cable glands also help protect cable entry points and reduce stress on internal connections.
When evaluating a Heavy Duty Connector, buyers should consider the complete structure rather than focusing on one feature. A reliable connector requires cooperation between housing protection, contact performance, and mechanical design.
Selecting a Heavy Duty Connector requires careful evaluation of technical specifications. The correct choice depends on electrical requirements, installation conditions, and the application environment.
A connector that does not match system requirements may cause overheating, connection instability, or premature failure. Therefore, industrial buyers should review several important factors before placing an order.
Electrical performance is one of the most important factors when selecting an industrial connector. Buyers should first confirm whether the connector can support the required voltage, current, and cable specifications.
Key parameters include:
Specification | Why It Matters |
|---|---|
Rated voltage | Ensures safe operation within system limits |
Rated current | Determines power transmission capability |
Number of poles | Matches power and signal requirements |
Contact resistance | Influences electrical stability |
Cable size | Ensures proper installation compatibility |
The rated current should always match the actual operating load. If a connector operates beyond its designed capacity, excessive heat may occur and reduce service life.
The number of contacts is also important. Some automation systems require only power transmission, while others need combined power and signal connections. Choosing the correct pole configuration helps simplify wiring and improves system integration.
For example, a control cabinet may require multiple signal contacts, while heavy machinery may focus more on high current transmission. Understanding the equipment requirements before selection helps avoid unnecessary modifications.
Industrial connectors often operate in environments where dust, water, and mechanical stress are common. Therefore, protection level is an essential factor during purchasing.
The IP rating shows how well a connector protects against external elements. For industrial applications, products with higher protection levels are often preferred because they provide better resistance against dust and moisture.
Common considerations include:
Environment | Selection Focus |
|---|---|
Factory floor | Dust protection and mechanical strength |
Outdoor equipment | Water resistance and weather durability |
High vibration machinery | Locking performance |
Humid areas | Sealing capability |
For example, connectors used in production equipment may require strong dust protection, while outdoor applications may require additional sealing against rain and moisture.
However, a higher protection rating does not automatically mean the connector is suitable for every application. Buyers should match the protection level with actual operating conditions.
Tip： The correct IP rating depends on the installation environment, not only the product category.
Housing material affects durability, weight, and resistance to environmental conditions.
Die-cast aluminum housings are widely used in industrial applications because they provide strong mechanical protection. They can withstand impacts and demanding working environments, making them suitable for machinery and automation equipment.
Engineering plastic housings offer another option. They are lightweight, provide good insulation, and can resist corrosion in certain environments. They may be suitable for applications where weight reduction or electrical insulation is important.
When choosing housing materials, buyers should consider:
Mechanical impact risks
Installation location
Temperature conditions
Corrosion exposure
Equipment requirements
The right housing material helps extend connector service life and reduces maintenance frequency.
The connection method affects installation efficiency, maintenance requirements, and long-term reliability.
Common connection methods include:
Connection Type | Main Characteristics |
|---|---|
Crimp connection | Strong mechanical connection and stable performance |
Screw connection | Easy adjustment and maintenance |
Spring connection | Faster installation and convenient wiring |
Crimp connections are commonly used where strong and permanent electrical connections are required. Screw connections provide flexibility because technicians can adjust or maintain wiring more easily. Spring connection designs can improve installation speed in suitable applications.
The best choice depends on the equipment design and maintenance requirements. A connector used in frequently serviced equipment may require easier installation, while permanent industrial systems may prioritize long-term stability.
Connector size and configuration directly affect installation efficiency and system integration. Before purchasing a Heavy Duty Connector, buyers should confirm the available installation space, cable arrangement, and connection requirements of the equipment.
Different machines may require different connector structures. A compact control cabinet may need a smaller connector design to save internal space, while large industrial equipment may require larger housings, higher contact capacity, and stronger mechanical protection.
Important configuration factors include:
Selection Factor | Consideration |
|---|---|
Number of contacts | Matches power and signal circuits |
Housing size | Fits installation space |
Cable entry direction | Supports proper cable routing |
Mounting structure | Ensures easy installation |
Modular design | Allows future expansion |
The contact arrangement should also match the electrical system. Using an unsuitable pole number may increase wiring complexity or require additional components.
For automation projects, a well-designed connector configuration improves installation speed and simplifies future maintenance. Buyers should consider not only current requirements but also possible equipment upgrades.
Mechanical reliability is a key factor in industrial connector selection. Machines used in factories often experience continuous vibration, movement, and repeated operating cycles. Without a secure locking system, connectors may loosen over time and create connection risks.
A reliable Heavy Duty Connector usually includes strong locking structures that keep the housing and contacts securely connected. Common designs include locking levers, screw locking systems, and reinforced fastening mechanisms.
When evaluating mechanical performance, buyers should consider:
Resistance to vibration
Connection stability
Number of connection cycles
Ease of installation and removal
Protection against accidental disconnection
For example, industrial robots and automated production equipment often move thousands of times during operation. A connector with a stable locking structure helps maintain consistent electrical performance throughout the equipment lifecycle.
Mechanical strength should work together with electrical performance. A connector with excellent current capacity may still fail if the connection structure cannot handle the actual working environment.
Compatibility is another important factor before purchasing a Heavy Duty Connector. Even a high-quality connector may not perform properly if it does not match the existing equipment design.
Before selecting a product, buyers should confirm:
Cable specifications
Installation dimensions
Connector mounting method
Existing electrical interfaces
Required accessories
Different machines have different connection requirements. For example, replacing a connector in an existing control cabinet may require matching the original mounting position and wiring structure. A new connector that requires major modifications may increase installation time and project costs.
Working with an experienced supplier can reduce these risks. CHIKU Contact provides industrial connection solutions for different application scenarios and helps customers select suitable connector configurations according to project requirements.
Choosing a Heavy Duty Connector requires understanding the application environment. Different industries have different requirements for power transmission, signal communication, installation space, and protection performance.
A connector used in a robotic production line may focus on vibration resistance and repeated operation. A connector used in outdoor equipment may require stronger sealing and environmental protection.
The right selection process begins with understanding the actual working conditions.
Industrial automation equipment requires stable electrical connections because production systems often operate continuously for long periods.
Common applications include:
CNC machines
Industrial robots
Automated assembly lines
Packaging equipment
Processing machinery
These systems usually involve frequent movement, mechanical vibration, and repeated electrical cycles. A suitable Heavy Duty Connector helps maintain reliable power and signal transmission between different equipment modules.
For automation applications, buyers should focus on:
Secure locking design
Suitable current capacity
Compact installation structure
High mechanical durability
A connector that matches the machine design can reduce downtime caused by connection failures. It also makes equipment maintenance easier because technicians can quickly disconnect and reconnect components when servicing machines.
Control cabinets are central components in industrial automation systems. They contain power distribution units, controllers, terminals, and signal management components.
A suitable connector helps organize internal wiring and improves system flexibility. It can simplify connections between the cabinet and external equipment while reducing complicated cable arrangements.
When selecting connectors for control cabinets, consider:
Available installation space
Number of required circuits
Cable routing requirements
Maintenance convenience
Modular connector designs are especially useful because they allow engineers to combine different power and signal modules according to system requirements.
CHIKU Contact offers a range of industrial connector solutions suitable for electrical connection applications. Customers can review product options through the CHIKU Contact product page.
Some industrial systems operate outside standard factory conditions. Outdoor equipment, transportation systems, and energy-related applications often face changing weather conditions and environmental stress.
In these situations, connector selection should consider:
Dust exposure
Water contact
Temperature changes
Corrosion risks
Mechanical impact
A connector with suitable housing protection and sealing performance can improve operational reliability.
However, buyers should avoid selecting products only based on protection ratings. The connector must also meet electrical requirements and mechanical conditions.
For example, an outdoor machine may need strong environmental protection, but it still requires correct current capacity and cable compatibility.
Modern automation systems require not only power transmission but also stable signal communication.
Signal-related applications include:
Sensors
Controllers
Monitoring equipment
Industrial communication systems
These applications require connectors that can maintain accurate signal transmission during equipment operation.
Important factors include:
Contact quality
Signal stability
Contact quantity
Installation flexibility
A suitable connector design helps reduce wiring complexity and improves system organization.
Different connector structures are designed for different industrial requirements. Understanding the available types helps buyers select the most suitable solution.
Multipole Heavy Duty Connectors contain multiple contacts within one connector housing. They are commonly used when equipment requires multiple power or signal connections in a limited installation space.
They are suitable for:
Automation systems
Industrial machinery
Control equipment
Manufacturing lines
Their main advantage is simplified wiring. Instead of using multiple separate connectors, one multipole solution can combine different connection requirements.
This design improves installation efficiency and makes maintenance easier.
Cable mount connectors are installed directly onto cables and provide flexible connection options for industrial equipment.
They are often used in:
Mobile machinery
Production equipment
Temporary systems
Equipment interfaces
Their advantages include flexible installation and easier equipment replacement.
For machines that require frequent connection and disconnection, cable mount designs can improve maintenance efficiency.
Panel mount connectors are installed directly onto equipment panels or control cabinets.
They provide a fixed connection point between internal systems and external equipment.
Common applications include:
Control panels
Industrial machines
Electrical cabinets
Panel mount solutions provide clean installation and improve system organization.
They are commonly selected for equipment requiring stable and repeatable connections.
Modular connector systems allow users to customize contact arrangements according to application needs.
They can combine:
Power contacts
Signal contacts
Data modules
Different contact sizes
This flexibility makes them suitable for complex industrial projects.
A modular Heavy Duty Connector solution can support future equipment expansion and reduce redesign requirements when systems change.
Price is an important purchasing factor, but it should not be the only consideration.
Low-cost connectors may appear attractive initially, but poor quality can increase long-term costs through frequent replacement, maintenance work, and unexpected downtime.
Industrial buyers should evaluate total value, including:
Product lifespan
Reliability
Maintenance requirements
Supplier support
A connector that performs consistently can provide better long-term economic value.
One common mistake is selecting connectors without considering the actual operating environment.
Different applications require different protection levels. A connector used in a clean indoor cabinet may not need the same protection as one used outdoors or in heavy industrial areas.
Ignoring environmental factors may result in:
Reduced service life
Connection instability
Increased maintenance
Always evaluate temperature, moisture, dust, vibration, and mechanical stress before selection.
Electrical mismatch can create serious operational problems.
Common errors include:
Choosing insufficient current capacity
Ignoring voltage requirements
Selecting incorrect contact numbers
Using incompatible cable sizes
A Heavy Duty Connector must match the electrical requirements of the complete system.
A connector should support not only initial installation but also future maintenance.
Buyers should consider:
Installation time
Replacement convenience
Spare parts availability
Technician requirements
Easy maintenance helps reduce equipment downtime and improves overall operational efficiency.
CHIKU Contact provides reliable Heavy Duty Connector solutions for industrial automation applications.
Its connectors support stable power and signal transmission with durable designs, flexible configurations, and strong environmental protection.
By selecting the right connector specifications, industries can improve equipment reliability and reduce maintenance risks.
A: A Heavy Duty Connector provides reliable power and signal connections for industrial automation equipment, machines, and control systems.
A: Select a Heavy Duty Connector based on voltage, current, IP rating, housing material, cable size, and application environment.
A: They improve connection stability in harsh environments with vibration, dust, moisture, and mechanical stress.
A: Check electrical ratings, contact type, pole number, locking design, and compatibility with existing equipment.
