When discussing modern electronics and automation systems, the term optocoupler relays frequently appears, particularly in relation to relay boards. Relay boards are critical components in circuits that need to switch high voltages or currents while being controlled by low-power devices such as microcontrollers, PLCs, or logic circuits. The integration of optocouplers into these boards may seem like an additional layer of complexity, but their role is fundamental to reliability, safety, and performance. At its core, an optocoupler is a semiconductor device that transfers electrical signals between two isolated circuits through light. Inside the device, an LED converts the input electrical signal into light, which is then detected by a photosensitive element such as a photodiode or phototransistor. This optical method of transmission ensures that the input side (low-voltage control circuit) remains electrically isolated from the output side (high-voltage switching circuit). Without this isolation, delicate controllers such as an Arduino, Raspberry Pi, or industrial logic controller could be damaged by transient surges, electromagnetic interference, or direct exposure to higher voltages. By embedding optocouplers in relay boards, manufacturers create a safer and more robust interface for designers and engineers. This safeguard is not only about preventing catastrophic failures; it also extends the longevity of the control electronics, minimizes noise coupling, and improves system stability.
The most crucial point of including optocouplers on relay boards is electrical isolation. Electrical isolation is the separation between the low-voltage side, where sensitive microcontrollers or processors operate, and the high-voltage side, where relays manage currents for appliances, motors, or other equipment. A direct electrical link between these two sides would mean that a surge, spark, or high-voltage fluctuation could travel back to the controller, instantly destroying it. Optocouplers act as a protective wall, using light instead of electrical conduction to transmit the signal. This wall eliminates the direct path of current, making it nearly impossible for damaging voltages to backflow into the sensitive side. The importance of this becomes clearer in industrial automation, where relays frequently switch heavy loads such as pumps, compressors, or heating elements. Without optocouplers, every switching event could potentially expose the controller to inductive spikes, noise, and transient surges. Even small disturbances could result in unpredictable microcontroller behavior, causing unnecessary downtime. By isolating the two sections, optocouplers help maintain precise control without interference. Additionally, safety standards often require such isolation to protect not only the devices but also operators who interact with the systems. Thus, optocouplers serve as both an engineering necessity and a regulatory compliance solution, making them indispensable on relay boards.
Another critical role of optocouplers is maintaining signal integrity. Relay boards are often deployed in environments full of electrical noise, particularly in industrial machinery, HVAC systems, or smart home automation setups. Electrical noise, such as electromagnetic interference (EMI) and radio frequency interference (RFI), can distort or weaken signals, leading to false triggering of relays. Optocouplers combat this problem by clearly defining the boundaries of the signal path. Since the input is converted into light, the possibility of noise directly influencing the signal transfer is drastically reduced. This ensures that when the microcontroller outputs a logic HIGH, the relay receives an unambiguous ON command, and vice versa. The benefits of this extend to stable performance, predictable switching, and lower maintenance needs. Engineers and designers often prefer relay boards with optocouplers because they provide assurance against unpredictable glitches. This reliability is particularly important in mission-critical systems such as medical equipment, security alarms, or process control, where a false relay activation could lead to safety hazards or costly malfunctions. In addition, optocouplers often provide additional features such as Schmitt-trigger characteristics, which further clean up signals before they reach the relay, strengthening the system against spurious pulses or oscillations. This combination of clean signal transfer and noise resilience makes optocoupler relays a standard choice in modern control system design.
| Feature | With Optocouplers | Without Optocouplers |
|---|---|---|
| Electrical Isolation | Complete separation between circuits | Direct link exposes control side |
| Controller Protection | High protection against surges | Risk of damage from transients |
| Noise Immunity | High, reduces false triggering | Low, prone to EMI/RFI interference |
| Signal Integrity | Stable and reliable | May be distorted under heavy load |
| System Safety | Meets regulatory safety standards | Often requires external protections |
| Application Suitability | Ideal for industrial and critical use | Limited to low-risk environments |
Understanding why optocouplers are included in relay boards becomes clearer when looking at real-world applications. In home automation, a relay board may be used to control lights, fans, or security systems through a microcontroller. If these relay boards lacked optocouplers, a simple voltage spike from the mains wiring could travel back into the controller, rendering the entire smart system useless. Similarly, in industrial automation, relay boards often control motors or actuators that draw heavy inductive currents. Each time these loads are switched, they generate voltage spikes that can easily exceed safe levels for control electronics. Optocouplers prevent these dangerous conditions from affecting the low-voltage side, ensuring consistent operation. In medical equipment, where safety and reliability are paramount, relay boards with optocouplers help maintain strict isolation standards, protecting both the machines and patients. Even in renewable energy systems such as solar inverters, optocoupler relays allow for safe interaction between high-voltage panels and low-voltage monitoring systems. Across all these sectors, the common thread is that optocouplers enable engineers to combine sensitive electronics with high-power switching safely and effectively. Without them, design complexity and risk management would increase significantly, making development costlier and less reliable.

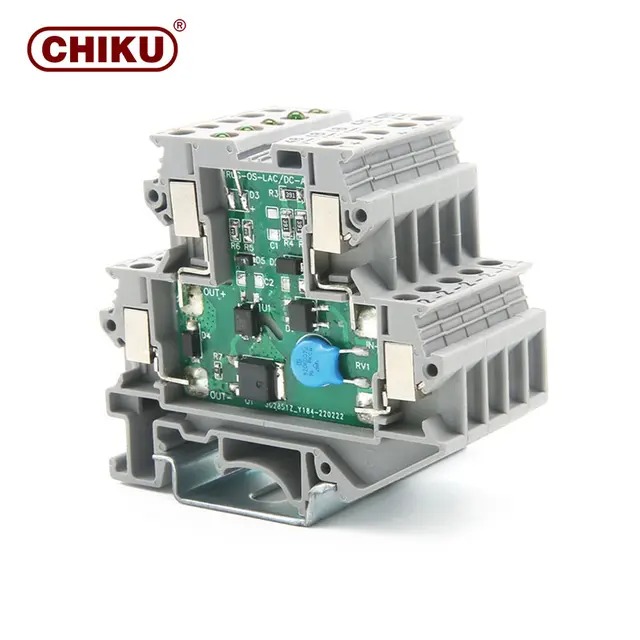

An optocoupler relay is a relay board that integrates optocoupler devices to provide electrical isolation between the control circuit and the load circuit. This setup ensures signals are transmitted safely using light rather than direct electrical contact.
They protect sensitive control electronics from high voltages, noise, and surges while also ensuring signal clarity and compliance with safety standards.
Not all. Some low-cost boards omit them to save on production costs, but such boards expose the controller to greater risks. For critical applications, choosing optocoupler relays is strongly recommended.
Yes. In most cases, they are pin-compatible and offer enhanced safety and reliability. Engineers often upgrade to optocoupler versions when stability and protection are required.
Even in low-voltage setups, electrical noise or spikes can cause malfunctions. Optocouplers add an extra layer of robustness, so while not strictly necessary, they are highly beneficial.
In summary, the inclusion of optocouplers on relay boards is not a mere design luxury—it is a technical necessity in today’s electronic systems. They provide robust electrical isolation, safeguard microcontrollers and processors from surges, ensure signal integrity, and protect against electromagnetic interference. The difference between relay boards with and without optocouplers is stark, particularly when viewed from the perspective of long-term reliability and safety. Whether used in home automation, industrial machinery, renewable energy, or medical devices, optocoupler relays create the essential barrier that allows high-voltage systems and low-voltage controllers to work in harmony. For engineers, hobbyists, and system integrators alike, opting for relay boards with optocouplers is an investment in both performance and peace of mind. Their role in ensuring consistent operation, regulatory compliance, and user safety underscores why they have become the standard in modern relay board design. Ultimately, the point of optocouplers on relay boards is crystal clear: they bridge the gap between control and power safely, efficiently, and reliably.
