In the world of electrical systems, ensuring that all components are connected safely, securely, and efficiently is crucial. One of the most essential components in achieving reliable electrical connections is the terminal block. This article will explore the necessity of terminal blocks, discussing their importance, applications, advantages, key features, and why they are indispensable in modern electrical systems.

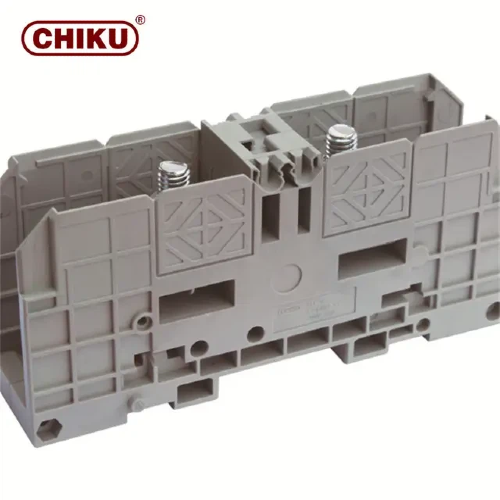

A terminal block is a specialized electrical component used to join electrical wires or cables together in a way that makes the connection both secure and easy to manage. These blocks are commonly used in a wide range of electrical systems, from simple circuits to complex control panels. A typical terminal block consists of an insulating base with conductive metal inserts, which allow multiple electrical connections to be made with the help of screws or springs.
There are several types of terminal blocks, each designed for specific wiring requirements and applications. The most common types are:
Screw terminal blocks use a screw mechanism to secure the wire in place. They are reliable and commonly used in industrial applications. The wire is inserted into the terminal, and the screw is tightened to ensure a solid connection.
Spring terminal blocks use a spring mechanism to hold the wire in place. These are faster to install than screw terminals, as they eliminate the need for manual tightening. Spring terminals are often used in low-voltage circuits.
Barrier terminal blocks have a physical barrier between each terminal, which is ideal for separating connections that carry different voltages or currents. These are typically used in more advanced electrical systems where safety is a priority.
Plug-in terminal blocks allow for easy disconnection and reconnection of wires. They are often used in systems that require frequent maintenance or modification.
Electrical systems require components that can ensure stable and secure connections for both power distribution and control. Terminal blocks provide a convenient and safe way to create these connections, offering a physical interface where wires can be connected and disconnected without compromising the integrity of the system. A reliable connection ensures minimal resistance and maximum safety, reducing the risks of malfunction or electrical fires.
While there are other methods of connecting wires, such as soldering or twist-on connectors, terminal blocks offer superior safety and reliability. For example:
Method | Advantages | Disadvantages |
Soldering | Permanent, reliable connections | Requires high skills, not easily reversible |
Twist-on Connectors | Quick and easy to use | Can become loose over time, especially in vibration-prone areas |
Terminal Blocks | Easy installation and maintenance, secure, and reliable | Requires more space compared to other methods |
One of the most common applications for terminal blocks is in industrial control panels. These panels control and monitor electrical equipment in industrial settings, such as manufacturing plants, and require many connections to control motors, sensors, and other systems. Terminal blocks provide a neat and organized way to connect these wires, allowing for easy troubleshooting, maintenance, and modification.
In power distribution systems, terminal blocks are crucial for creating safe and stable connections between wires and electrical devices. These systems must handle high-voltage currents, and using reliable components like terminal blocks ensures that power is distributed without risk of short circuits or other electrical faults.
Terminal blocks also play a significant role in automotive electrical systems. Cars have hundreds of electrical components, such as lights, sensors, and controls, that must be wired together in an organized manner. Terminal blocks provide a simple solution for creating secure connections in tight spaces, offering both flexibility and ease of maintenance.
As electrical systems become increasingly complex, the need for organized and reliable connections becomes more pressing. In industries like automation, terminal blocks help manage multiple wiring configurations by allowing quick adjustments or replacements without disturbing the entire system. This is essential in a modern world where electrical components need to be constantly updated and modified for efficiency and safety.
One of the standout advantages of terminal blocks is their modularity. Electrical systems are rarely static; they evolve as new components are added or configurations are changed. Terminal blocks allow for these changes to be made quickly and efficiently. By using modular blocks, electrical systems can be expanded or adjusted without requiring significant rewiring or disassembly.
In many countries, electrical systems are subject to strict safety and environmental regulations. Terminal blocks help systems meet these requirements by ensuring that connections are stable, safe, and easy to inspect. For example, they ensure that wire connections do not overheat and that they are secure enough to prevent accidental disconnections, which could lead to hazardous conditions.
Terminal blocks simplify the wiring process, making it faster and more efficient. In industrial and commercial applications, electricians can install terminal blocks without the need for specialized tools or extensive knowledge. Simply strip the wire, insert it into the block, and tighten the screw or activate the spring mechanism. The simplicity of this installation process helps reduce installation time, which can lead to significant cost savings.
Terminal blocks offer excellent flexibility in terms of system design. Whether it's for a small residential circuit or a large industrial setup, terminal blocks provide the scalability needed to accommodate systems of varying complexity. With terminal blocks, users can easily modify existing systems or expand them by adding additional blocks.
While the initial cost of terminal blocks might be higher compared to other connection methods, they provide long-term cost savings. The ability to easily modify or expand systems without rewiring is invaluable, and the security provided by terminal blocks reduces the risk of electrical malfunctions or failures that could result in costly repairs.
The primary advantage of terminal blocks is the enhanced reliability and safety they offer. Since they provide secure and organized connections, the likelihood of loose connections or exposed wires is minimized. In high-power systems, where safety is critical, terminal blocks help prevent short circuits and electrical fires, making them a necessity in modern electrical design.
When selecting terminal blocks for an electrical system, it's essential to consider various factors to ensure optimal performance. Below are some of the key features to consider:
Feature | Explanation |
Material | Terminal blocks are typically made from materials like copper, brass, or plastic. These materials affect the block's durability, conductivity, and resistance to environmental factors. |
Voltage Rating | Each terminal block is rated for a certain voltage. It's essential to select one that matches the system’s power requirements. |
Current Rating | Terminal blocks also have a maximum current rating. Choosing the correct one ensures the block can handle the electrical load without overheating. |
Temperature Resistance | Terminal blocks must withstand different environmental conditions. High-temperature resistance is crucial for outdoor or industrial use. |
Size and Shape | The size of the terminal block impacts how many connections can be made. Larger blocks may be required for high-voltage systems, while smaller ones are better suited for compact spaces. |
Terminal blocks are necessary in almost all electrical systems, especially in applications that require frequent maintenance, troubleshooting, or modification. This includes industrial control panels, high-power distribution systems, and automation setups. The use of terminal blocks helps maintain organized, accessible, and safe wiring.
There are instances where terminal blocks may not be the most practical choice. For example, in low-voltage, non-complex circuits, twist-on wire connectors may be sufficient. However, even in these cases, terminal blocks can offer a more secure and long-lasting solution.
In conclusion, terminal blocks are essential components in modern electrical systems, offering secure, flexible, and reliable connections across various applications, from industrial control systems to residential wiring. Their key benefits, such as easy installation, scalability, cost-effectiveness, and enhanced safety, make them indispensable in ensuring the efficiency and safety of electrical setups. At Huntec, we specialize in providing high-quality terminal blocks designed to meet the evolving needs of industries worldwide. Our products are engineered for durability, reliability, and ease of integration into complex systems. If you're looking for expert solutions and top-tier terminal blocks, we encourage you to explore how our offerings can support your electrical projects. Feel free to contact us for personalized assistance and to learn more about how we can help optimize your electrical systems.
The most common types of terminal blocks are screw-type, spring-type, barrier-type, and plug-in terminal blocks. Each type offers unique benefits depending on the application.
Terminal blocks are designed to secure the wires tightly and prevent them from coming loose, which significantly reduces the risk of electrical faults or fires.
Yes, terminal blocks come with various voltage ratings, making them suitable for both low-voltage and high-voltage applications.
Yes, terminal blocks are very easy to install. They typically require only a few basic tools (e.g., screwdriver) and can be installed quickly, even in tight spaces.
Terminal blocks can last for many years, depending on their material, environmental conditions, and how well they are maintained.
Yes, there are terminal blocks designed specifically for harsh environments, including outdoor installations. These often feature corrosion-resistant materials and enhanced insulation.
