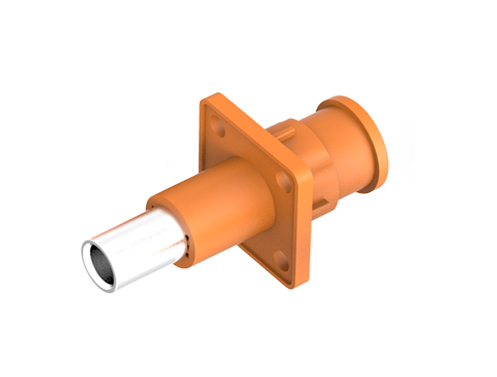

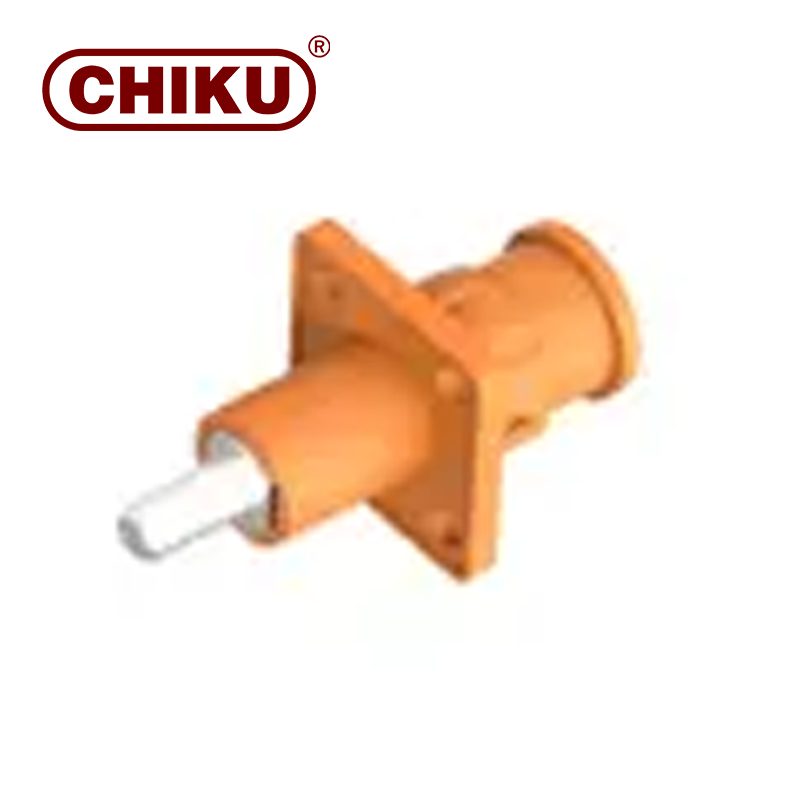

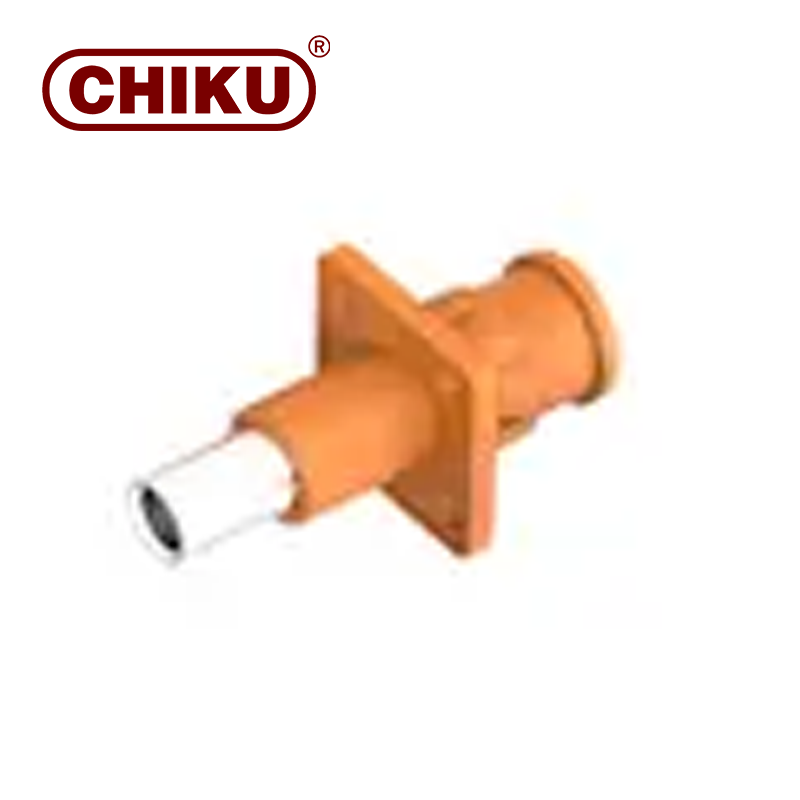

RES-P-10/25-DB-21-OG

High Voltage and Current Ratings:
Capable of handling high voltage and current levels, making it ideal for demanding energy storage applications.
Environmental Resistance:
IP67 rated for dust and water resistance, ensuring reliable performance in challenging environments.
Enhanced Efficiency:
Reduces energy loss and improves overall system efficiency, contributing to cost savings and better energy management.

RES-P-10:1500V, 50A
RES-P-16:1500V, 80A
RES-P-25:1500V, 120A
RES-P-35:1500V, 150A

Voltage Rating: 1500V
Current Rating: 50A-350A
Material: High-quality copper with silver plating
Contact Resistance: ≤ 0.5mΩ
Insulation Resistance: ≥ 5000MΩ
Operating Temperature Range: -40°C to +125°C
Protection Level: IP67
Certification: UL, CE

RES Energy Storage Connector is constructed from high-grade copper and aluminum alloys, ensuring superior electrical conductivity and strength. The housing is made from durable, flame-retardant plastic materials that provide excellent insulation and protection. Additionally, the connectors are coated with corrosion-resistant finishes to enhance longevity and reliability in various environmental conditions.
