Terminal blocks are critical components in electrical systems, offering a secure and efficient means of connecting wires. These small yet essential devices help establish safe and stable electrical connections in various applications, from industrial machinery to electrical panels. Despite their widespread use, terminal blocks are not without their challenges. In this article, we will explore the most common issue with terminal blocks, diving deep into various types, causes, and solutions to ensure optimal performance and reliability.
A terminal block is an electrical connector used to secure and organize multiple wires in a circuit. Typically, it features a set of terminals or screws to which the ends of the wires are attached. Terminal blocks are designed to make wiring easier, safer, and more organized, especially in complex electrical systems.
There are several types of terminal blocks, each serving different purposes in electrical connections. The most common types include:

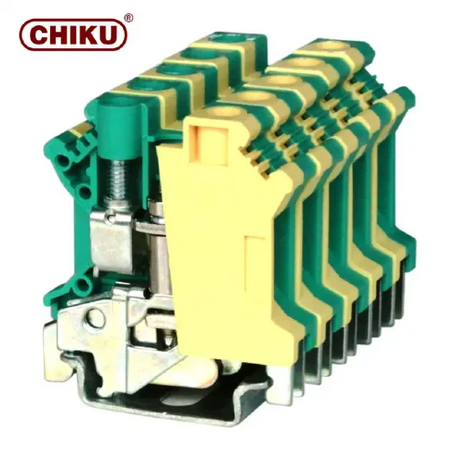

Terminal Block Connectors: These connectors are often used in control panels, switchboards, and electrical equipment to connect wires together. They allow for safe, removable connections.

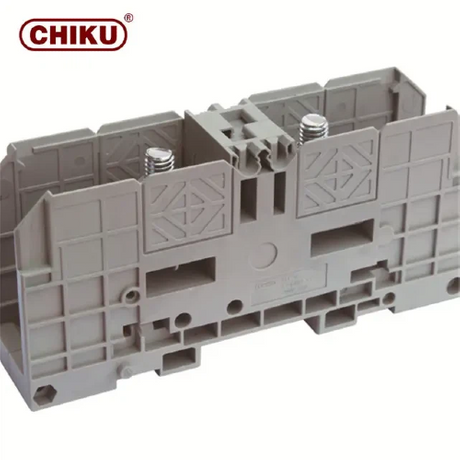

Screw Terminal Block: A screw terminal block uses screws to secure the wire connections. The wire is inserted into a slot, and a screw is tightened to hold it firmly in place. This type of terminal block is easy to use and provides a strong, secure connection.
Spring Terminal Block: This type of terminal block uses a spring mechanism to hold the wires in place. It eliminates the need for screws and is ideal for quick installation and maintenance.
Barrier Terminal Block: Barrier terminal blocks separate different circuits, preventing cross-connections and short circuits. These terminal blocks are often used in industrial settings where safety and organization are critical.
Despite their efficiency and versatility, terminal blocks can face a range of issues that affect their performance. Below, we highlight the most common problems associated with terminal blocks and provide insights into how to mitigate them.
Issue Description:
One of the most common issues with terminal blocks is loose connections. Over time, vibrations or poor installation practices can cause screws to loosen or spring connections to weaken, resulting in unreliable electrical connections.
Cause:
Loose connections can occur due to:
Incorrect torque applied during installation.
Vibration from machinery or equipment.
Corrosion of the terminals or screws.
Frequent connection and disconnection of wires.
Solution:
To prevent loose connections:
Always tighten screws to the manufacturer’s recommended torque specifications.
Regularly inspect terminal blocks to ensure they remain secure.
Use lock washers or vibration-resistant terminal blocks in areas prone to movement or vibration.
Clean terminals periodically to prevent corrosion.
Issue Description:
Overheating is a significant concern, especially in high-power applications. When terminal blocks are improperly sized for the current they are carrying, they can overheat, potentially leading to insulation breakdown or fires.
Cause:
Overheating typically occurs when:
The terminal block is rated for lower current than required.
Insufficient ventilation or airflow around the terminal block.
High resistance at the connection point due to corrosion, dirt, or loose connections.
Solution:
To avoid overheating:
Always use terminal blocks with the correct current and voltage ratings.
Ensure proper ventilation and airflow in the installation area.
Regularly check connections for signs of wear or damage.
Use terminal blocks made of materials that can withstand higher temperatures.
Issue Description:
Improper wire insertion can lead to weak or unreliable connections. If the wire is not fully inserted into the terminal block, the connection will be unstable, leading to potential short circuits or signal failures.
Cause:
This issue can arise from:
Insufficient stripping of the wire insulation.
Over-tightening of the screw, causing the wire to be pushed out.
Using the wrong wire gauge for the terminal block.
Solution:
To prevent poor wire insertion:
Strip the wire insulation to the correct length as specified by the terminal block’s manufacturer.
Ensure the wire is fully inserted into the terminal before tightening.
Choose the appropriate wire gauge that matches the terminal block’s specifications.
Issue Description:
Corrosion is a common issue, particularly in environments with high humidity or exposure to chemicals. Corroded terminals can result in poor connections, increased resistance, and even complete failure.
Cause:
Corrosion occurs due to:
Exposure to moisture, humidity, or chemicals.
Inadequate sealing or protective covers.
Use of terminal blocks made from materials prone to rust or corrosion.
Solution:
To combat corrosion:
Choose corrosion-resistant terminal blocks, such as those made from stainless steel or materials with protective coatings.
Ensure that terminal blocks are properly sealed and protected from moisture and chemicals.
Use terminals with protective covers or gaskets to prevent moisture ingress.
Issue Description:
Using the wrong wire size for the terminal block can lead to poor electrical performance, overheating, or even fires. Terminal blocks are designed to accommodate specific wire gauges, and using a larger or smaller gauge than recommended can cause problems.
Cause:
This issue arises when:
Wires that are too large for the terminal block are forced into place.
Wires that are too small create poor contact with the terminal.
Incorrect wire gauge selected during installation.
Solution:
To avoid issues with wire size:
Always ensure that the wire gauge is compatible with the terminal block specifications.
Use wire-stripping tools to correctly strip wire insulation without damaging the conductor.
Refer to the manufacturer’s guide for recommended wire gauges and avoid forcing wires into terminal blocks.
Issue Description:
Overloading is a critical issue that occurs when a terminal block carries more current than it is designed for. This can result in the melting of insulation, failure of the terminal block, or fire hazards.
Cause:
Overloading happens when:
The circuit’s current exceeds the rated current capacity of the terminal block.
The terminal block is used for applications beyond its designed purpose.
Insufficient safety margins are applied in circuit design.
Solution:
To prevent overloading:
Ensure that the terminal block is rated for the full current of the circuit.
Use proper fuses or circuit breakers to protect the terminal block and the rest of the system.
Design circuits with appropriate safety margins to avoid overloading.
Issue Description:
Electrical arcing occurs when electrical current jumps across a gap between contacts, causing sparks, heat, and potential damage to the terminal block and surrounding components.
Cause:
Arcing is typically caused by:
Loose connections that allow air gaps to form between contact points.
Rapid switching of high current or voltage.
Inadequate maintenance of terminal blocks.
Solution:
To prevent arcing:
Ensure connections are tightly secured.
Use terminal blocks rated for high-voltage or high-current applications where necessary.
Periodically inspect connections and clean any signs of wear or damage.
The primary function of a terminal block is to connect multiple electrical wires together, securely and safely, within a circuit. It helps in organizing and managing electrical connections in panels, machinery, and other electronic devices.
Choosing the right terminal block involves considering the wire gauge, voltage and current ratings, environment (e.g., corrosive, high temperature), and the type of connection required. Always refer to the manufacturer’s guidelines to ensure compatibility.
Yes, some terminal blocks are designed for high-temperature environments. When selecting a terminal block for such conditions, ensure it is made from materials that can withstand high heat and choose one with an appropriate temperature rating.
Screw terminal blocks use screws to secure the wire, providing a stable and reliable connection. Spring terminal blocks, on the other hand, use spring-loaded mechanisms to secure wires, offering a quicker and tool-free installation.
Barrier terminal blocks are safer in applications where circuits must be isolated from one another, reducing the risk of short circuits. They are especially useful in industrial environments where safety and organization are crucial.
