Labor accounts for the majority of control panel building costs. Manual wire termination remains a primary bottleneck during production. We spend countless hours stripping, inserting, and torquing standard screws. The technology shift toward tool-free connectivity changes this reality. Engineers demand faster assembly and standardized insertion force. They also require extreme vibration resistance. We must rethink how we build control cabinets. Relying exclusively on legacy methods wastes significant capital. This article provides a pragmatic, evidence-based framework. Procurement managers and engineers will discover how to evaluate these modern components. You will learn how to measure direct labor savings. We will explore when specifying a tool free terminal block delivers tangible returns. You will also learn when traditional methods still make sense. Let us dive into the engineering realities shaping modern electrical connections.
You must evaluate both component pricing and internal labor rates accurately. Tool-free variants carry a higher per-unit price than standard screw terminals. We acknowledge this baseline reality immediately. However, hardware expenses represent only a fraction of overall cabinet costs. Labor represents the true financial burden. Electricians charge premium hourly rates. Spending excessive time tightening screws drains project budgets rapidly. You must analyze the complete financial picture.
Break down the precise time saved per termination. Traditional methods require stripping the wire, inserting it carefully, and torquing the screw. This process averages fifteen seconds per connection. Modern alternatives streamline this workflow. You simply strip, crimp a ferrule, and push the wire directly. This takes merely five seconds. Saving ten seconds per wire yields massive dividends. High-volume panels often house thousands of connection points. You quickly eliminate hours of manual labor per enclosure.
Quality control improves dramatically alongside assembly speed. Tool-free technology removes the human element entirely. Standard screws suffer from inconsistent torque application. Tired technicians frequently under-torque connections. This creates dangerous hot spots. Over-torquing strips internal threads completely. Both scenarios cause severe failures. Push-in mechanisms eliminate these risks. Factory acceptance testing (FAT) passes much faster. You experience significantly less field rework.
Establish clear success criteria for your procurement team. Use this numbered evaluation process:
Transition your designs when localized labor savings exceed the hardware upgrade costs. Most high-volume facilities reach this break-even point rapidly.

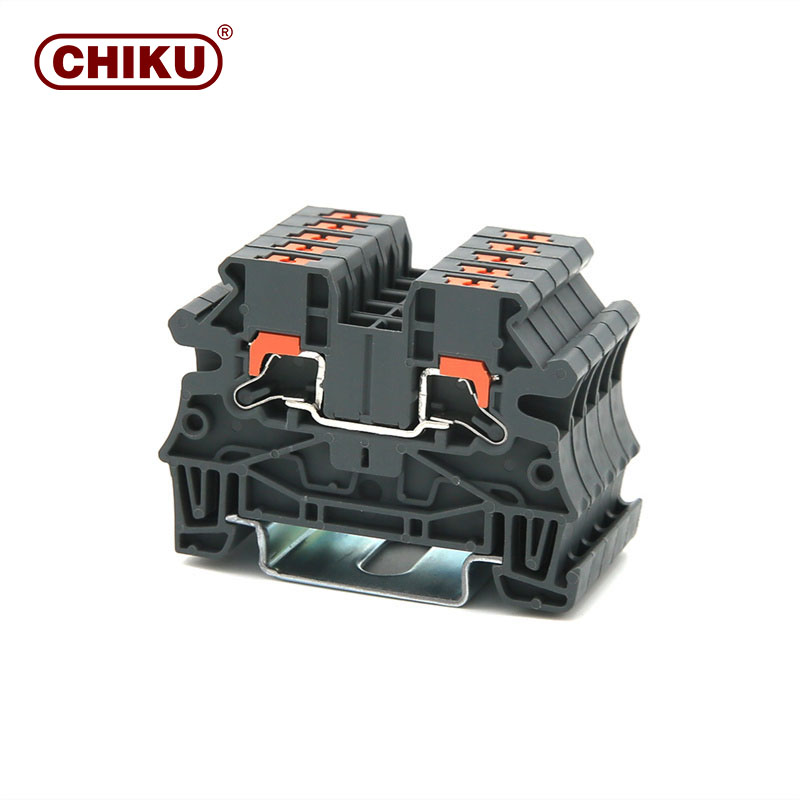

Mechanical reliability dictates component selection in harsh environments. We must understand the underlying physical mechanism. A push in spring terminal block operates differently than a threaded clamp. It maintains constant, dynamic contact force against the conductor. Copper wires settle over time. Thermal cycling causes microscopic expansion and contraction. Standard screws cannot adapt to these physical changes. They loosen gradually. An internal spring adapts continuously. It pushes against the wire constantly. It absorbs micro-movements effortlessly.
Vibration mitigation becomes simple using spring-cage technologies. Industries facing extreme mechanical stress mandate these components. Railway rolling stock experiences violent, continuous shaking. IEC 61373 standards dictate strict shock and vibration resistance. Heavy machinery generates constant low-frequency tremors. Maritime transit faces similar environmental challenges. Standard screws back out under these conditions. Spring mechanisms lock the conductor securely. Tension actually increases during extreme mechanical stress. You prevent disastrous power disconnects.
We must eliminate the hidden expense of routine maintenance. Traditional screw terminals require constant upkeep. Plant managers schedule mandatory re-tightening intervals annually. Technicians physically check hundreds of individual screws. This tedious process requires expensive facility downtime. It introduces new risks of human error. Push-in technology eliminates this requirement entirely. The connections remain maintenance-free for their entire operational lifespan. You save significantly on long-term operations and maintenance. Your overall system reliability increases exponentially.
Space constraints challenge every electrical designer today. Factory floor space carries immense value. We constantly seek ways to shrink cabinet dimensions. Front-entry wiring provides an elegant solution. A tool-free DIN rail terminal block optimizes panel layouts perfectly. Traditional side-entry blocks require extra bending room for thick cables. Front-entry models allow vertical wire insertion directly from the duct. You place wire ducts much closer to the terminal strip. You save precious vertical inches on the backplate.
Modularity accelerates complex circuit testing. Modern designs feature dual test shafts. Technicians insert standard multimeter probes easily. They check voltages without removing wires. Plug-in bridge systems distribute power efficiently. You simply press the jumper into the designated slot. You bridge multiple poles instantly. You accomplish this without requiring hand tools. Complex potential distribution takes seconds instead of minutes. You eliminate daisy-chained wire loops entirely.
Multi-level components reduce your physical footprint dramatically. Double-deck and triple-deck tool-free blocks stack connections vertically. You fit twice the connections in the exact same DIN rail length. This allows designers to specify smaller enclosures. Smaller cabinets reduce steel costs. They require less wall space. You reduce physical footprint requirements on the factory floor significantly.
Table 1: Cabinet Space Optimization Metrics| Terminal Type | Wiring Orientation | Wire Duct Clearance Needed | Footprint Reduction |
|---|---|---|---|
| Standard Single-Level Screw | Side-Entry | High (Accommodates bending radius) | Baseline (0%) |
| Single-Level Push-In | Front-Entry | Low (Direct vertical insertion) | Up to 15% |
| Double-Level Push-In | Front-Entry | Low | Up to 50% |
| Triple-Level Push-In | Front-Entry | Low | Up to 66% |
Tool-free technology offers immense benefits. However, it does not fit every possible application. Very high-current scenarios pose physical challenges. Heavy-gauge wiring above 4/0 AWG resists bending. Manual push-in becomes physically difficult for technicians. The insertion force required exceeds human limits. Stud or ring-lug terminations remain the industry standard here. They offer superior mechanical leverage for massive cables. You should stick to bolted connections for main power feeds.
Unprepared stranded wire limits installation speed significantly. Inserting highly flexible, fine-stranded wire directly causes frustration. The delicate strands splay outwards. They catch on the internal spring mechanism. You cannot push them in directly. You often still require a screwdriver. You must manually actuate the release button to open the spring. This extra step negates the speed advantage entirely. You must use ferruled wires to realize true efficiency gains.
Legacy specification constraints dictate component choices frequently. You might retrofit an older installation. The existing panel uses standard screw components exclusively. Plant managers often prioritize strict uniformity. Maintaining one terminal type across the entire facility reduces spare parts inventory. It standardizes technician training. Localized wiring speed takes a back seat to logistical simplicity. You should respect these facility-wide mandates.
Review these critical risk factors before switching your specifications:
Selecting the right technology requires systematic evaluation. Establish strict wire preparation standards first. Tool-free efficiency relies heavily on proper wire ends. Invest in automated stripping and ferrule crimping machines. They maximize installation speed. Ensure your crimping profile matches the terminal shape. Hexagonal or trapezoidal crimps work best. They slide into the spring cavity smoothly. A proper ferrule profile guarantees a secure, gas-tight fit.
Verify compliance and certifications rigorously. You cannot compromise on safety ratings. Look for UL and CSA marks always. Check IEC 60947-7-1 compliance for international projects. This standard defines strict electrical performance rules. It ensures the block handles specific voltage and current requirements safely. Request gas-tight connection verification test reports from the manufacturer. These reports prove the connection resists corrosive industrial atmospheres.
Evaluate the broader vendor ecosystem carefully. A single terminal block cannot stand alone. You need compatible accessories. End covers, marker tags, and jumpers must fit seamlessly. Ensure CAD and E-PLAN data availability. Digital integration speeds up your initial panel design. Engineers rely on digital twins for modern engineering workflows. You must verify these ecosystem elements before committing. Find a highly reliable tool free wire terminal to anchor your cabinet architecture.
Take direct action internally. Conduct a localized time-study on a standard panel build. Build one cabinet using legacy screws. Build an identical cabinet using push-in technology. Record the exact assembly time for both. Capture internal baseline data objectively. Standardize your procurement only after confirming the real-world ROI.
Tool-free terminal blocks do not serve as universal replacements. However, they remain the superior choice for most modern applications. They excel in high-volume, high-density, or high-vibration environments. The massive reduction in labor hours justifies the slight hardware premium. You eliminate maintenance-heavy torque checks entirely. You shrink your cabinet footprint significantly.
Execute your upgrade strategy systematically. Evaluate your highest-volume control panel bill of materials today. Calculate the total termination count accurately. Request engineering samples for a pilot assembly run. Measure your localized labor savings directly. Train your technicians on proper ferrule crimping techniques. Transition your designs confidently and reclaim your project margins.
A: Yes. They meet strict retention force standards. The internal spring mechanism bites deeply into the ferrule or wire. Tension actually increases the grip strength. Pull-out resistance equals or exceeds traditional screw connections.
A: No, but they help significantly. Solid core and rigid stranded wires push in directly. Fine stranded wire requires a ferrule for true tool-free insertion. Otherwise, you must use a small tool to open the spring first.
A: Yes. They offer exact parity in ampacity ratings for equivalent wire gauges. IEC and UL standards confirm these ratings. The dynamic spring contact ensures zero voltage drop under maximum rated loads.
A: You use the built-in actuation button or slot. You press the button or insert a standard screwdriver into the release slot. This mechanism safely releases the spring tension, freeing the wire instantly.
