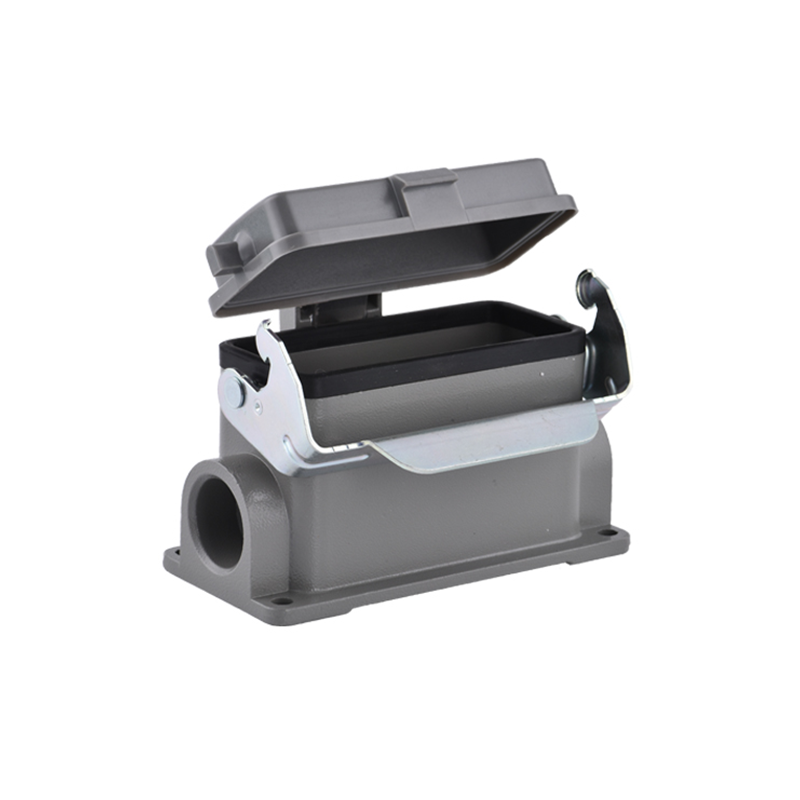

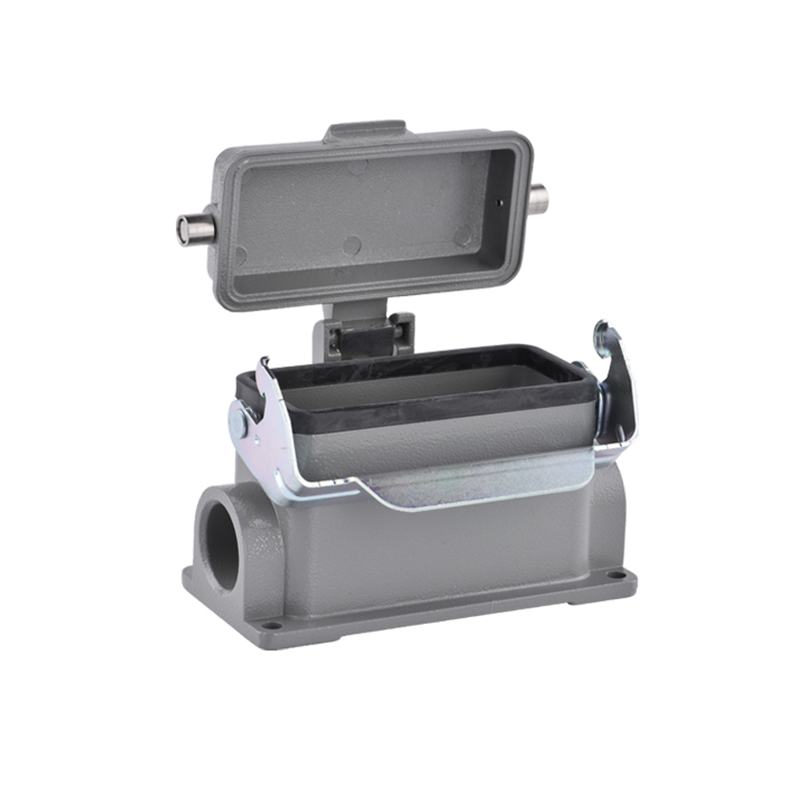

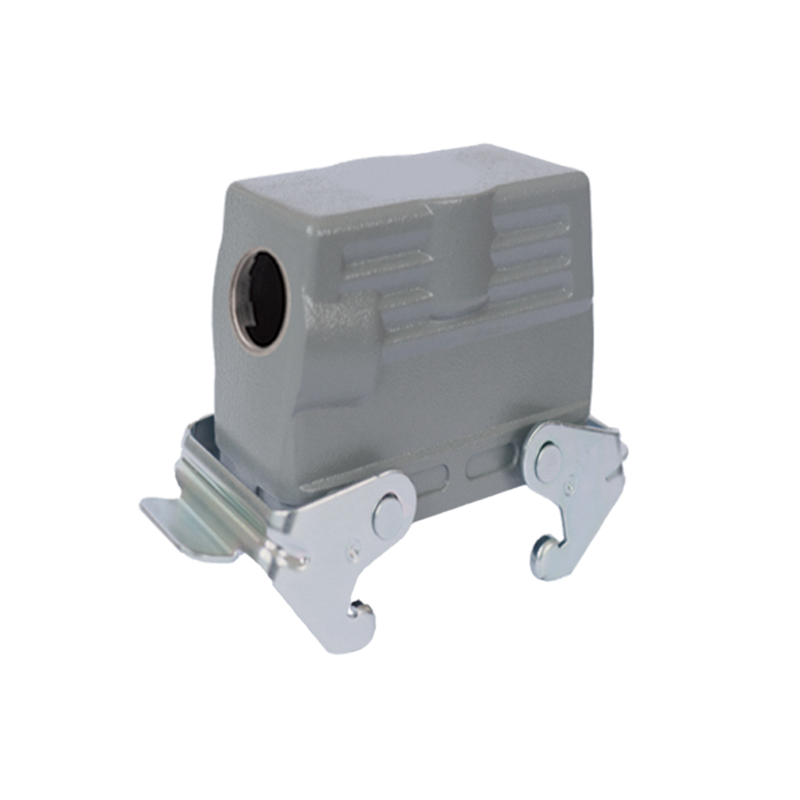

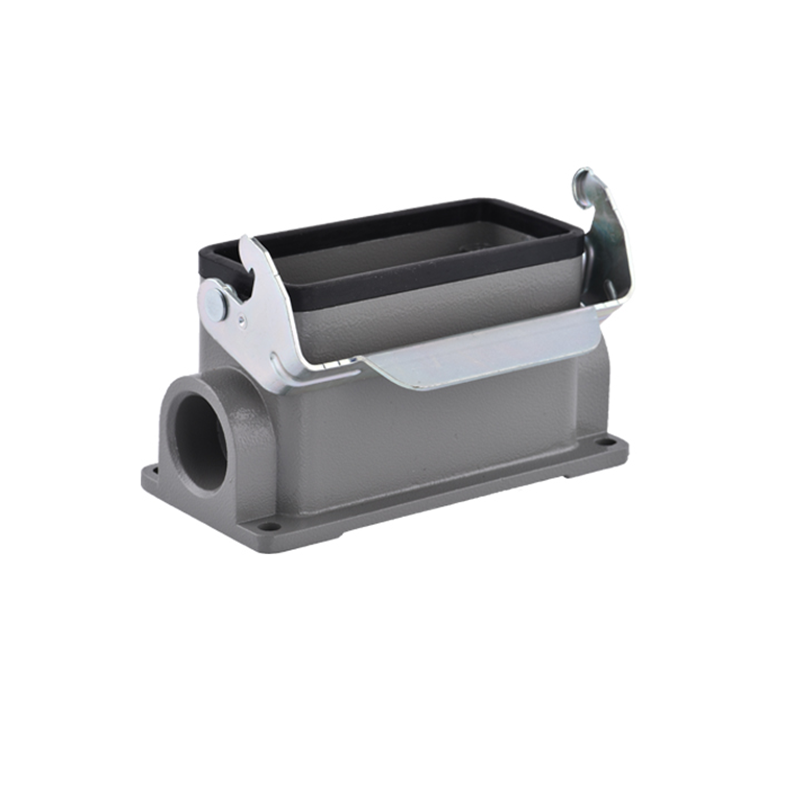

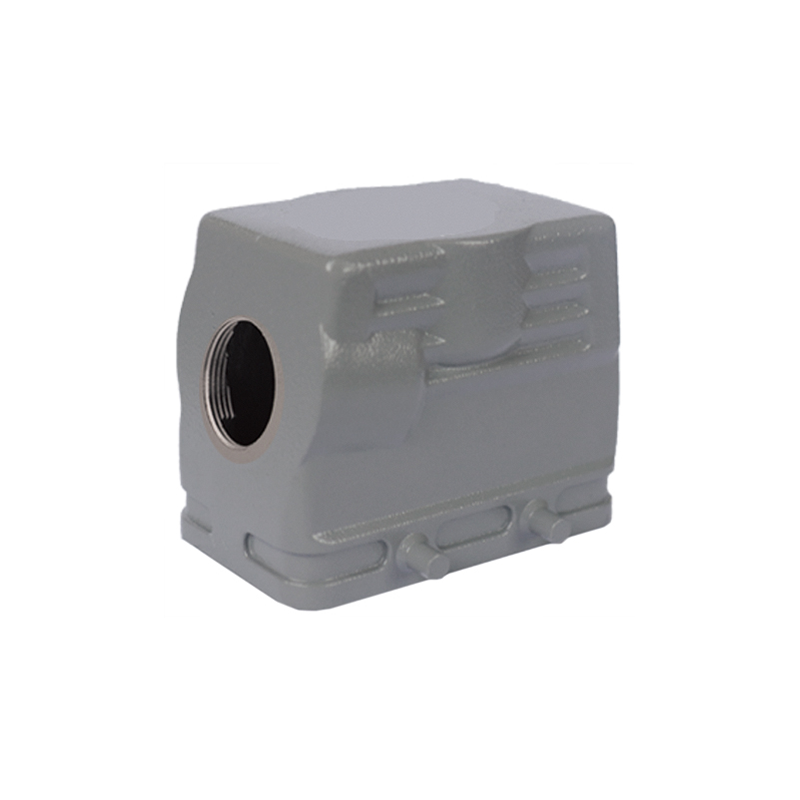

H16B Heavy Duty Connector Rectangular Connector Metal Protective Housing for High-Stress Environments

1. Extreme Durability & High Protection
Built with robust materials like cast aluminum or engineering thermoplastics, HDCs feature high IP ratings (such as IP65, IP68, or IP69). They effectively resist dust, water, oil, extreme temperatures (-40°C to +125°C), vibration, and chemical corrosion, ensuring reliable performance in harsh industrial environments.
2.Modular Flexibility
Adopting a modular design, HDCs allow power, signal, data, pneumatic, and fiber optic modules to be freely combined within a single housing. This highly integrated approach maximizes space utilization and easily accommodates future upgrades or system reconfigurations without replacing the entire connector.
3. Efficient Installation & Maintenance
Designed for quick plug-and-play connections, HDCs significantly reduce wiring time and eliminate complex hard-wiring. Features like tool-free assembly and anti-misalignment (fool-proof) designs help minimize installation errors, drastically cutting down equipment downtime during maintenance and replacement.

1.Robust Housing Design
The model features a sturdy rectangular housing made of metal or high-grade plastic to withstand harsh industrial environments. It utilizes double sealing rings to ensure high protection ratings like IP65 or IP68 against dust and water.
2.Modular Insert System
It employs a flexible modular design that allows power, signal, and data contacts to be combined within a single frame. This configuration maximizes space efficiency and simplifies custom assembly for different application needs.
3.Secure Locking Mechanism
The model is equipped with reliable locking options, such as screw jacks or side-entry levers, to ensure a tight connection. This prevents accidental disconnection caused by vibration or shock during heavy-duty operations.

1.High-Capacity Electrical Contacts
The contacts are engineered to handle high currents up to 200A and voltages up to 1000V with low contact resistance. They ensure stable power and signal transmission even under heavy electrical loads.
2.Precision Keying and Coding
Integrated guide pins and multiple keying options physically prevent mismatched mating during assembly. This foolproof design eliminates misalignment risks and protects internal components from damage.
3.Durable Mechanical Locking
Robust locking mechanisms like metal levers with damping functions or screw jacks secure the hood tightly to the base. They provide superior resistance to vibration and shock to maintain a continuous connection in rugged conditions.

1.Die-Cast Metal Alloys
Zinc or aluminum alloys are commonly used for their superior mechanical strength and effective EMI shielding capabilities. These housings often feature powder-coated surfaces to resist corrosion and withstand heavy impacts in rugged industrial settings.
2.Engineering Thermoplastics
Glass-fiber reinforced PA66 or PBT provides a lightweight alternative that significantly reduces overall weight while maintaining high structural rigidity. These materials offer inherent resistance to chemicals and salt fog, making them ideal for harsh environments without the need for additional plating.
3.Specialized High-Performance Polymers
Advanced polymers like PPS are selected for extreme applications requiring exceptional thermal stability and UL94 V-0 flame retardancy. They ensure the housing remains dimensionally stable and crack-free even under continuous exposure to high temperatures and aggressive cleaning agents.
