Selecting terminal blocks is rarely just a space-saving exercise. It acts as a critical safeguard against thermal failure and safety hazards. It also heavily influences your overall panel-assembly expenses. Suboptimal selection leads directly to current overload. This overload remains the primary cause of connection failure across industrial setups. It forces excessive assembly labor and creates long-term maintenance liabilities in harsh environments. You must view these components as vital system anchors rather than generic hardware.
When connections fail, the resulting downtime easily outweighs any initial component savings. We often see engineers underestimate the extreme conditions inside sealed control panels. Small specification errors compound into massive operational failures over time. You need a structured approach to evaluate these parts properly.
This guide provides an evidence-based framework for evaluating terminal components. We will examine electrical margins, material integrity, and strict compliance standards. You will learn how to balance installation speed with long-term reliability effectively. We explore the distinct differences between various securement designs. You will leave with actionable steps for specifying components tailored exactly to your demanding industrial settings.
Safety Margins: Always specify a current rating of at least 150% of the system’s expected maximum load to prevent thermal degradation.
Labor vs. Component Cost: Balancing the low unit cost of traditional fasteners against the rapid-assembly advantages of tool-free alternatives reduces TCO.
Micro-Environment Matching: Creepage and clearance distances must be evaluated against specific application "Pollution Degrees" (e.g., IEC Pollution Degree 3 for industrial use).
Material Compliance: Reliable housing materials must meet strict UL 94 V-0 flame retardancy standards, while conductive paths dictate baseline contact resistance.
Current overload remains the leading driver of terminal failure. Insufficient current ratings lead directly to irreversible mechanical stress. When components draw more current than designed, the metal expands and contracts violently. This thermal cycling loosens the physical connection over time. Loose connections inevitably trigger dangerous arc-flash hazards. Engineers must prioritize appropriate safety ratings aggressively to prevent catastrophic system meltdowns. Proper component sizing stops these preventable failures.
Component price often distracts purchasing departments from the real expenses. Assembly labor demands a much higher budget allocation. Engineers must weigh the time spent torquing fasteners against the initial premium of quick-connect technologies. You save countless hours on large panel assemblies when utilizing tool-free options. We recommend measuring the exact time your technicians spend per connection. You will quickly discover how rapid-assembly methods lower your overall production expenses.
Standardization streamlines future troubleshooting efforts significantly. Utilizing color-coded blocks replaces fragile traditional labeling systems effectively. Paper labels fade, tear, and fall off in harsh environments. Color-coded plastics never lose their visual identity. They accelerate fault diagnostics during highly stressful power outages. Technicians visually trace green for ground or red for power circuits instantly. This visual clarity lowers lifecycle maintenance costs and dramatically speeds up facility recovery times.
We rely heavily on the 150% rule of thumb. Always select a current rating 150% higher than your maximum expected operational current. This buffer mitigates thermal risks caused by unexpected transient spikes. Motor startups and capacitor charging cycles create immense temporary power surges. You need components equipped to absorb these electrical spikes safely. Specifying exact capacities leaves zero room for error. A healthy margin provides absolute peace of mind during operation.
You must also carefully evaluate system voltage against component pitch. Pitch refers to the exact physical distance between adjacent connection poles. Common industrial sizes range from 2.54mm up to 5.0mm. High-voltage systems absolutely require wider pitches. This physical separation prevents electricity from arcing across the adjacent poles. You must ensure the pitch safely accommodates your peak system voltage. Failing to align voltage with pitch creates an immediate fire hazard inside the cabinet.
Physical constraints dictate component selection just as much as electrical ones. Always confirm compatibility with your specific wire types beforehand. Solid wires behave much differently than stranded wires during insertion. Stranded wires often require extra securement care to prevent fraying. You must also align your regional sizing standards precisely. Converting North American AWG sizes to European mm² equivalents requires exact calculations. Guessing these conversions causes dangerously loose electrical joints.
Cabinet spatial constraints pose another major mechanical challenge. Every wire type features a strict maximum bend radius. If you bend a thick power wire too sharply, the internal copper breaks. You must account for these physical bend limits inside the control panel layout. Consider implementing multi-level connection configurations to save space. Double-tier or triple-tier structures stack connections vertically. They optimize high-density PCB layouts efficiently. You conserve precious DIN rail space without sacrificing safety or accessibility.
We evaluate several different connection methods to secure wires effectively. Each distinct type offers unique operational benefits. You must evaluate your operational priorities before ordering Terminal Blocks.

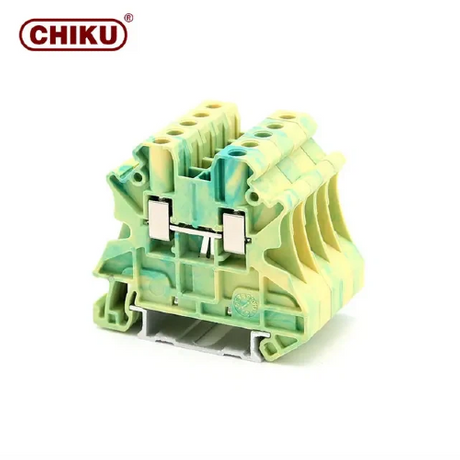

For instance, Screw Terminal Blocks excel in heavy-duty applications. They provide immense physical contact force. They easily accommodate multi-strand and solid wire versatility. These units handle thick, stubborn wires better than any alternative. However, they carry a significant risk factor during installation. They require strict torque control from the technician. Over-tightening causes severe mechanical damage to the wire strands. Under-tightening increases internal contact resistance drastically. This resistance generates heat and leads to premature failure.
Spring-cage and push-in technologies solve many manual fastening issues. They are best suited for high-vibration environments. Heavy machinery vibrations routinely shake traditional screws loose. Spring mechanisms maintain constant tension regardless of external shaking. They also fit perfectly into incredibly tight cabinet spaces. Their biggest advantage lies in labor reduction. They eliminate the need for manual torque control entirely. Technicians simply push the wire inside. This dramatically reduces panel assembly labor hours on the factory floor.
Insulation Displacement Connectors (IDC) offer another specialized path. They serve high-volume wiring needs perfectly. Internal metal blades pierce the wire insulation directly upon insertion. You bypass the tedious wire-stripping phase entirely. This saves countless hours during mass production runs. IDCs work flawlessly for data and low-power sensor connections. They provide a highly consistent, repeatable termination every single time.
Connection Technology Comparison Chart | |||
Connection Type | Best Application Environment | Primary Advantage | Key Limitation |
|---|---|---|---|
Screw Type | Heavy-duty, high current panels | Versatility across wire types | Requires strict torque control |
Push-In / Spring | High-vibration equipment | Eliminates manual torquing | Stranded wire may require ferrules |
IDC | High-volume mass production | Bypasses wire-stripping phase | Limited to specific wire gauges |
Conductors carry the electrical lifeblood of your entire system. The metal alloy you choose dictates performance heavily. Pure copper yields 100% IACS (International Annealed Copper Standard) conductivity. It is essential for high-current panels. It prevents localized heating perfectly by offering minimal electrical resistance. However, pure copper remains relatively soft mechanically.
Brass offers a highly practical alternative. A standard 70/30 brass blend offers a balanced 28% IACS conductivity. While less conductive than copper, it provides significantly higher mechanical durability. It resists thread stripping when technicians apply high torque loads. Aluminum bronze fits cost-sensitive, lower-stress tasks perfectly. It balances acceptable conductivity with lower material expenses.
Insulators protect the conductive core from external interference. PA66 (Nylon 66) is the absolute industrial standard for plastic housings. It delivers excellent halogen-free performance. It sustains 80–90°C operating temperatures flawlessly over decades. It resists cracking, fading, and brittleness. Engineers reserve ceramic housings for extreme applications. Ceramics withstand severe heat and harsh chemical exposure that would instantly melt standard plastics.
Conductive Alloy Properties | |||
Metal Alloy Type | Conductivity (% IACS) | Mechanical Strength | Ideal Industrial Application |
|---|---|---|---|
Pure Copper | 100% | Low to Moderate | High-current control panels |
70/30 Brass | 28% | High | High-torque securement areas |
Aluminum Bronze | 12-15% | Moderate | Cost-sensitive, low-stress setups |
We must test components for true real-world conditions. The IEC 60947-7-1 standard governs this testing space strictly. Do not evaluate components based on the general room environment. A large factory floor might remain comfortably at 25°C. However, inside a sealed metal cabinet under direct sunlight, temperatures skyrocket. You must evaluate the "micro-environment" directly at the terminal junction. This highly localized spot dictates true system performance.
Pollution Degrees define how airborne contaminants affect electrical safety. Industrial defaults require components rated for Pollution Degree 3. This specific rating means the operational environment contains conductive pollution. It also accounts for dry non-conductive pollution. When unexpected condensation occurs inside the panel, this dry dust becomes highly conductive. Your components must maintain adequate clearance distances to handle this wet, conductive dust safely.
Safety standards are written based on historical industrial accidents. Flame retardancy remains absolutely non-negotiable. UL 94 V-0 is the gold standard for industrial panel materials. Plastics must self-extinguish within 10 seconds of flame removal. Furthermore, they must produce no flaming drips. Flaming drips easily ignite lower components inside the cabinet. Insisting on V-0 compliance prevents localized electrical faults from escalating into full facility fires.
Installation Standard Operating Procedures (SOPs) guarantee baseline safety. You must mandate exact torque specifications during panel assembly.
Deploy calibrated torque screwdrivers to all assembly technicians.
Establish a double-check verification process for high-power connections.
Document the exact torque applied to critical power distribution nodes.
Proper assembly prevents irreversible mechanical stress on the components. It also blocks electrical arcing before it ever starts. A well-assembled joint operates silently and safely for decades.
Lifecycle maintenance keeps aging systems alive. Establish a strict 6-month visual inspection schedule. Require maintenance technicians to retorque standard fasteners routinely. Temperature cycling causes even the tightest metal joints to back out slightly. Implement strict procedures for clearing accumulated dust. Use soft-bristled brushes or regulated compressed air carefully. Dust accumulation causes environmental bridging between adjacent poles. This bridging leads directly to catastrophic short circuits if ignored.
Choosing the appropriate connection hardware prevents catastrophic thermal failures and slashes installation labor. You must treat these components as foundational elements of your electrical infrastructure. Follow a structured evaluation process to protect your equipment and your personnel.
Implement Shortlisting Logic: Base your final selection on a strict hierarchy of needs. Prioritize a 150% electrical safety margin first. Never compromise on current capacity.
Verify Environmental Compliance: Ensure your choices match the exact micro-environment. Confirm the Pollution Degree and demand UL94 V-0 flame retardancy.
Assess Labor Impacts: Evaluate the true labor expenses when choosing between manual securement and tool-free push-in styles. Time saved equals money saved.
Request Samples: Ask manufacturers for engineering samples. Do not buy bulk quantities based purely on catalog specifications.
Conduct Live Testing: Perform transient overvoltage and heat-generation testing. Test them in fully assembled, real-world enclosure conditions before final procurement.
A: Improper torque accounts for the majority of fastener failures. Over-torquing crushes the wire and strips the internal threads. Under-torquing creates high electrical resistance. This resistance generates excessive heat and potential fire hazards. Technicians must use calibrated torque screwdrivers to ensure exact specifications are met.
A: Standard metal contacts create unwanted Thermal EMF (electromotive force). This interference skews precise temperature readings. Thermocouple-specific blocks solve this problem entirely. They use matched conductive materials corresponding to specific thermocouple types. This eliminates interference and ensures highly accurate control panel readings.
A: Ferrules remain optional for many standard screw terminals. However, we highly recommend cold-pressed ferrules for spring-cage and push-in connectors. They prove essential when using stranded wires. Ferrules prevent wire fraying entirely. They ensure a secure, uniform connection area for the internal spring mechanism to grip.
