Electrical systems rely heavily on secure physical connections to function safely. Engineers often view these hardware pieces as simple passive components. However, specifying the wrong Terminal Block can lead to localized heating, catastrophic arc faults, or excessive labor costs during assembly. Moving beyond temporary fixes like electrical tape or direct soldering is essential today. Modern industrial applications require reliable, scalable, and modular wiring solutions. These robust systems simplify field troubleshooting and guarantee strict safety compliance.
This article provides a comprehensive technical evaluation framework. It helps engineers and procurement teams navigate functional classifications and compare mechanical trade-offs. You will learn exactly how to specify the correct component for complex industrial, printed circuit board, or high-vibration environments. By understanding these distinctions, you can optimize panel space and ensure long-term operational stability.
Terminal blocks are fundamentally categorized by three dimensions: wire securing method (how the wire is held), connection style (how the block mounts or routes power), and functional application.
Push-in and spring-cage designs are rapidly replacing traditional screw terminals in high-vibration applications due to reduced assembly time and maintenance-free retention.
A critical engineering rule of thumb: A terminal block’s rated current should be at least 150% of the system’s expected maximum current to prevent overheating.
Compliance isn't optional; base material selection must meet strict flame-retardant standards (e.g., UL94V-0) and regional certifications (UL, IEC, ATEX).
We must evaluate the mechanical connection between the wire and the block. This interface dictates assembly speed. It also determines vibration tolerance and physical connection strength. Different environments demand entirely different securing strategies.
Screw terminals represent the most common securing method in electrical panels. The mechanism uses a tightened screw to clamp down on the bare wire or ferrule.
They offer the highest physical clamping strength available. Manufacturers design them to accommodate massive wire gauges up to 250 kcmil. However, this method is highly labor-intensive. Technicians must strip, insert, and manually torque each connection. They remain susceptible to loosening in high-vibration environments if not properly torqued.
Best Practice: Always use a calibrated torque screwdriver. A common mistake is over-tightening, which crushes the copper strands and creates hidden failure points.
This design uses a pre-loaded spring to clamp the wire. You need a small screwdriver to open the spring before inserting the conductor. Once you remove the tool, the spring automatically clamps down securely.
Spring-cage models eliminate the risk of over-tightening entirely. They are exceptional for high-vibration environments like railway systems and heavy machinery. The constant spring tension maintains the electrical contact even during intense mechanical shock. However, they require specific tooling and two hands for wire removal.
Push-in mechanisms allow direct insertion of solid wires or ferruled stranded wires without any tools. The internal clamp opens automatically when you push the wire inward.
They drastically reduce installation labor costs, often by up to 50%. We highly recommend them for marine and chemical plant applications. In these sectors, frequent wiring changes or tight physical spaces are the norm. You only need a tool to release the wire, making them incredibly user-friendly.
IDC technology features internal metal blades. These blades slice through the wire insulation to make direct contact with the conductor inside.
This mechanism eliminates wire-stripping entirely. It saves significant preparation time. They are best suited for high-density, low-power data applications. You will frequently see them in telecommunications and networking gear rather than heavy industrial power routing.
Comparison Chart: Wire Securing Methods | |||
Securing Method | Vibration Tolerance | Installation Speed | Ideal Application |
|---|---|---|---|
Screw Terminal | Low/Medium | Slow | High-amperage power distribution |
Spring-Cage | Very High | Moderate | Heavy machinery, transit systems |
Push-In | High | Very Fast | Tight enclosures, frequent wiring updates |
IDC | Medium | Fast | Low-power telecom and data lines |
Connection style refers to how the block integrates into your physical hardware. We evaluate how they fit into panel spaces or directly onto circuit boards. Utilizing the correct high-grade Terminal Blocks minimizes physical footprint and streamlines your layout.

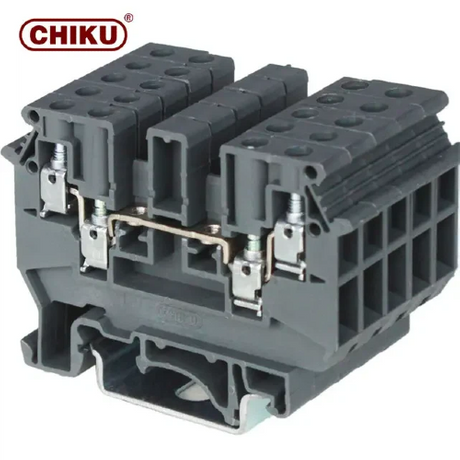

These units serve as the structural backbone of industrial control panels. They snap directly onto standard 35mm DIN rails. They are ideal for basic wire-to-wire connections.
Multi-level variants drastically reduce the horizontal panel footprint. You can stack double or triple deck blocks when cabinet space is at a premium. This approach keeps your control enclosures organized and compact.
Barrier strips feature insulated walls between each terminal position. These physical barriers serve a critical safety function.
Engineers primarily utilize them in high-voltage distribution. They also excel in environments experiencing heavy vibration. The insulated fences prevent stray copper strands from crossing over and causing short circuits. They actively mitigate high-voltage arcing between adjacent live connections.
Printed Circuit Board (PCB) mounts enable direct wire-to-board integration. The manufacturer solders the block housing directly onto the board surface.
They facilitate the transition from external wiring interfaces to internal logic routing. You can find them in modular, interlocking designs. This interlocking capability allows developers to scale pole counts effortlessly like building blocks.
Pluggable variants operate as a two-piece system. They feature a detachable plug and a fixed mating receptacle.
This design minimizes downtime during emergency maintenance. It allows field technicians to swap out entire modules or failed components quickly. They do not need to unscrew and re-wire individual discrete connections.
Standard continuity is only one part of panel design. Beyond simple routing, specialized blocks solve specific electrical challenges within control loops and PLCs.
These units are structurally designed to ground the input wire directly to the DIN rail or panel chassis. They establish a centralized earth-potential busbar. You can usually identify them by their green-and-yellow housing. They eliminate the need to run separate ground wires back to a main star point.
These blocks integrate a series fuse directly into the housing. They often include an LED blown-fuse indicator.
This design eliminates the need for separate external inline fuses. It provides immediate, localized overcurrent protection for sensitive sensors or actuators. If a fault occurs, the LED illuminates, allowing maintenance teams to visually locate the blown fuse instantly.
Temperature measurement circuits require extreme precision. Thermocouple blocks use specialized clamping metals. These metals perfectly match the specific thermocouple wire materials.
This precise matching prevents the "dissimilar metal" effect. When different metals touch, they can introduce parasitic voltage drops. These tiny voltages corrupt sensitive temperature readings. Using matched metals ensures data integrity.
Industrial facilities need to route massive currents. Power distribution blocks are engineered with heavy-duty internal contacts. They securely manage and split high-amperage loads across multiple secondary circuits. They effortlessly handle load surges and sustained vibrations in central power routing stations.
Choosing the correct component requires careful analysis. Procurement and design engineers must assess both quantitative and qualitative metrics before shortlisting a product. Here is a proven evaluation framework.
Current Rating: Do not specify exactly to the maximum expected load. You must apply the "150% Rule". Specify a block rated for at least 150% of the system's expected maximum current. This thermal buffer prevents localized overheating and ensures component longevity.
Voltage & Pitch: The pitch refers to the center-to-center pin spacing (e.g., 5.0mm or 7.62mm). This spacing dictates the creepage and clearance distances. Adequate pitch distances are necessary to prevent electrical arcing at high specified voltage ratings.
Wire Size Integration: Ensure compatibility with regional measurement standards. North America uses AWG, while IEC markets use mm². You must match the securing method to the wire type. Push-in mechanisms work best with single-core or ferruled wires. Conversely, screw designs are much more forgiving for bare stranded wire.
Wire-Entry Orientation: Always factor in technician accessibility. Choose between horizontal (90°), vertical (180°), or 45° entry angles. Your choice should depend entirely on internal enclosure restrictions and wiring duct placement.
Regulatory compliance is foundational. You must check for requisite regional certifications. North American deployments require UL listings, while international projects demand IEC approvals.
Furthermore, verify the housing polymer. The base plastics must meet the UL94V-0 flammability rating. This standard ensures the plastic self-extinguishes within seconds if exposed to an open flame.
Field deployment introduces variables that paper schematics cannot capture. You must anticipate troubleshooting needs and overcome common installation failures.
Assembly documentation must clearly define physical wire handling. Clearly specify wire stripping lengths. Usually, this is around 1/2 inch, though manufacturer specs vary by model.
You must also document strict torque limits. Over-tightening is the absolute leading cause of screw terminal failure. Providing exact torque values prevents technicians from crushing copper strands or stripping the housing threads.
You need to align physical panel labeling with electrical drawings. Educate your field teams on standard nomenclature.
For example, a schematic tag like TB4101-2M is not random. It typically indicates Terminal Block 4101, Terminal position 2, Middle layer. Clear naming conventions prevent catastrophic cross-wiring during commissioning.
Engineers must acknowledge the upfront labor cost differences. Transitioning a production line from screw-type to push-in technology requires changes.
It demands an initial investment in proper ferrule crimping tools. However, it yields massive productivity gains. Faster assembly times and zero maintenance tightening requirements easily justify the switch for modern production lines.
Selecting a terminal block requires balancing strict spatial constraints, labor budgets, and demanding operational environments.
Vibration tolerance should heavily influence your securing method choice.
Engineers should proactively audit their current field failure rates. If loose screw terminals cause frequent downtime, evaluate if a transition to spring-cage or push-in technology is warranted.
Always request manufacturer samples. You must verify pitch constraints and ferrule compatibility physically before initiating mass procurement.
A: A terminal strip usually refers to a specific type of continuous barrier block with insulated walls. It is a single, rigid piece used for robust applications. Conversely, a terminal block is the broader umbrella term. It encompasses individual DIN-rail modules, multi-level units, and pluggable PCB connectors.
A: Multi-level designs offer a massive spatial advantage. They allow you to stack two or three connections vertically. This configuration can cut your DIN rail footprint in half. Engineers frequently use them in sensor and actuator wiring where hundreds of connections converge in a small cabinet.
A: It depends on the wire. Solid wires can be pushed in directly without extra preparation. However, stranded wires absolutely require ferrules. The ferrule bundles the strands together, allowing you to utilize the push-in functionality without risking strand splaying or failed connections.
A: First, ensure it accepts your specific wire gauge (AWG or mm²). Second, apply the 150% maximum current rule to guarantee thermal stability. Finally, evaluate your physical enclosure space limits to select the correct pin pitch and wire-entry angle.
