Control cabinets are becoming incredibly dense. Engineers face mounting pressure to balance strict spatial constraints. At the same time, they must guarantee long-term wiring reliability and quick maintenance access. Feed-through connections function as the accepted baseline standard for modern panel layouts. However, selecting the wrong termination technology, housing material, or physical form factor introduces hidden dangers. Poor choices can lead to severe thermal risks, incredibly difficult maintenance routines, and completely wasted cabinet real estate. This article provides an objective, specifications-driven guide for your engineering team. You will learn exactly how to evaluate and specify the correct components. We will explore best practices for industrial, high-current, and highly compact panel applications to optimize your next build. We will break down core mechanics, form factor choices, and advanced connection technologies. By applying the frameworks discussed here, you can prevent structural failures and streamline your installation process.
Feed-through blocks utilize a "straight-through" design to route wires without bending, significantly reducing physical stress on thick conductors.
Upgrading from standard single-level to multi-conductor or offset-level blocks can drastically reduce spatial footprint in tight enclosures.
The "150% Rule" is essential: Always specify a current rating at least 1.5 times the system's expected peak to prevent thermal degradation.
Connection technology (screw vs. push-in vs. lever) directly impacts installation speed, cabinet depth requirements, and vibration resistance.
Polyamide 6.6 (PA6.6) with a UL94 V-0 flame rating is the industry standard for environmental durability, preventing cold-weather brittleness and ensuring fire safety.
Industry experts often use the term "straight-through" when discussing these components. This nomenclature perfectly describes the physical function. Conductors pass directly through the housing in a perfectly linear state. You do not need to bend or twist wires inside the enclosure. This straightforward path significantly reduces physical stress on the wire core. It prevents micro-fractures in thick conductors. Copper undergoes work hardening when you bend it repeatedly. Work-hardened copper becomes brittle and snaps under constant vibration. We see fewer points of failure when conductors remain absolutely straight.
These units serve a critical function within industrial control panels. They safely bridge internal control electronics to external field wiring. You can think of them as the primary demarcation point. Internal logic controllers connect to one side. Heavy-duty field sensors connect to the opposite side. This physical separation protects delicate internal boards from external wire tension. It also provides a clear testing point for troubleshooting technicians. If a sensor fails, you can isolate the circuit right at the demarcation point.
Visual standardization dramatically speeds up routine maintenance. Technicians rely on established color codes to map out complex cabinets quickly. Manufacturers produce housings in specific colors to indicate specific functions.
Gray or Blue: Designates standard straight-through routing. Blue usually indicates intrinsically safe or neutral circuits.
Green and Yellow: Identifies Protective Earth (PE) or grounding points.
Black: Typically indicates fused isolation connections.
You should always adhere to these standard visual identifiers. Doing so reduces human error during emergency repairs. We highly recommend standardizing your inventory around these core colors.
Implementation reality often ruins perfectly planned schematics. Standard 1:1 connections quickly eat up standard DIN Rail Terminal Blocks real estate. We must utilize smarter form factors when designing modern enclosures. Cabinet space costs money. You cannot always upgrade to a larger enclosure box.

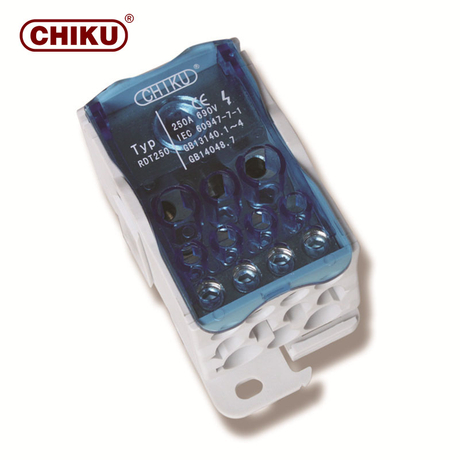

Traditional wiring requires duplicate bridging to split a signal. Multi-conductor designs eliminate this wasteful practice entirely. These units group three or four connection points onto a single internal conductive strip. You can connect one input wire and route three output wires from the same housing. This approach drastically reduces your total terminal count. It eliminates the need for external jumper accessories. You save parts, labor, and physical space simultaneously.
When horizontal width runs out, engineers must build vertically. Double-level and multi-level blocks stack connection points vertically. You can route two, three, or even four independent circuits through a single housing slice. This vertical stacking doubles or triples your wiring density instantly. It represents a highly effective way to compress wide cabinet layouts. You achieve much more functionality per inch of rail space.
Standard multi-level stacking creates a severe maintenance headache. Once you wire the top tier, you block access to the bottom tier. Offset level designs directly address this frustrating problem. By staggering the tiers like stairs, technicians gain clear access to every connection point.
Consider these practical benefits of staggered designs:
You can unscrew bottom-level wires without moving top-level wires.
Technicians can insert testing probes into any tier safely.
Wiring labels remain highly visible across all levels.
Wire entry angles improve, reducing physical strain on the installer.
Offset tiers ensure your space-saving measures never compromise future serviceability. You keep your maintenance team happy and efficient.
Choosing a termination method requires a clear decision framework. You must align your connection technology against expected vibration, wire gauge, and labor availability. The right choice prevents catastrophic disconnects. It also speeds up your overall assembly time.
Screw-driven clamping remains the traditional industry standard. It offers the highest possible contact force among all connection types. Engineers widely prefer screw connections when handling heavy multi-stranded wires. The strong clamping yoke actively flattens the wire bundle. This flattening action ensures maximum surface contact. However, standard screw connections are highly susceptible to vibration loosening. Thermal cycling also causes screws to back out over time. You must implement strict maintenance schedules to retorque screws in high-vibration environments.
Push-in technology provides an incredible spatial return on investment. Standard top-entry connections require installers to bend wires significantly. Side-entry designs completely eliminate the "bending radius" problem. Wires insert straight into the side of the housing. This zero-bend approach saves significant installation depth. It prevents intense physical stress on thick-gauge wire. Installers simply push solid or ferruled wires directly into the port. You save time and protect the physical integrity of the copper.
Labor turnover demands foolproof installation methods. Lever actuation systems offer entirely tool-free assembly. Installers lift a lever, insert the wire, and snap the lever closed. Internal springs generate a "programmed contact force" against the conductor. This mechanism completely removes human error from the installation equation. You never have to worry about over-torquing or under-torquing. This consistency guarantees long-term reliability across high-turnover assembly lines. Your quality control team will appreciate the standardized clamping pressure.
Technology Type | Best Wire Type | Vibration Resistance | Installation Speed |
|---|---|---|---|
Screw Clamp | Multi-stranded (bare) | Low to Moderate | Slowest |
Push-In (PT) | Solid / Ferruled | High | Fastest |
Lever / Push-Lock | All Types | Highest | Fast |
Selecting components based merely on a nominal spec sheet is risky. You need a robust engineering evaluation framework. This process ensures your selections withstand actual field conditions over time. Let us examine the core criteria for shortlisting components.
Selecting a block based solely on its nominal current rating introduces thermal risk. Surges and sustained peak loads generate localized heat. You must implement the "150% Rule" during your evaluation. Always specify a current rating at least 1.5 times the system's expected peak. If your peak load reaches 10 Amps, select a block rated for at least 15 Amps. This mandatory safety margin prevents localized overheating. It stops continuous thermal degradation over the product lifecycle. You extend the lifespan of the entire control panel by avoiding thermal stress.
You must carefully assess the mechanical pitch of the block. Pitch ranges typically span from 2.54mm up to 5.0mm for logic applications. Power applications require much wider spacing.
Keep these three spatial steps in mind:
Evaluate the required clearance distance through air to prevent arcing.
Measure the required creepage distance along the housing surface.
Match the resulting pitch to your sustained voltage endurance requirements.
Proper pitch selection prevents catastrophic short circuits in high-voltage panels. Environmental pollution also affects these measurements. Dust and moisture reduce effective creepage distances significantly.
Material selection dictates environmental survivability. Polyamide 6.6 (PA6.6) dominates the modern industrial market for specific reasons. PA6.6 naturally absorbs ambient moisture from the surrounding air. This absorption maintains the microscopic elasticity of the plastic. Elasticity prevents the housing from cracking in extreme -40°C cold weather environments. Simultaneously, PA6.6 easily handles continuous 100°C operating temperatures without melting.
Compliance standards remain strictly non-negotiable. You must ensure the housing material meets strict UL94 fire safety ratings. We require a UL94 V-0 rating for premium industrial installations. V-0 materials are self-extinguishing and stop burning within 10 seconds. You can accept a UL94 V-2 rating as an absolute minimum for less critical applications. Never compromise on fire safety testing.
Heavy-duty environments destroy standard components rapidly. You must adjust your selection criteria when dealing extreme loads. High mechanical forces require specialized structural considerations.

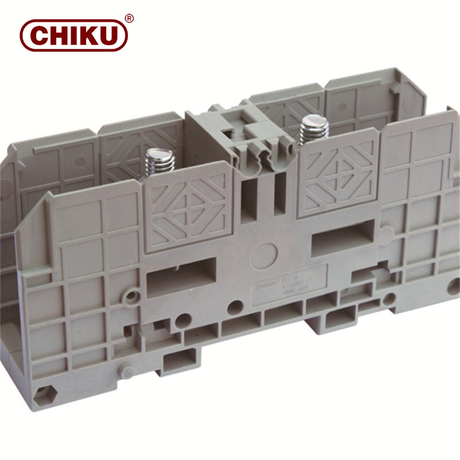

Large motor drives and solar PV inverters push massive amounts of energy. You must route up to 232A and 1000V safely through a panel chassis. High-current panel feed-throughs require specialized internal busbars. These robust conductive strips handle immense thermal loads without warping. Standard logic-level blocks will melt under these extreme conditions instantly. You must verify the cross-sectional area of the internal copper components. Larger cross-sections dissipate heat much more effectively.
Massive 185 mm² conductors introduce severe mechanical sheer forces. Standard DIN rail snapping mechanisms cannot hold this much weight securely. Thick heavy-duty cables act like physical levers against the plastic housing. You must specify heavy-duty mounting hardware for these demanding applications. Flange mounting systems secure the block directly to the metal panel backing. This technique absorbs the mechanical sheer forces completely. It protects the delicate internal electrical contact points from separating.
Connecting Aluminum and Copper wires together creates a hazardous galvanic reaction. The metals corrode quickly, increasing resistance and generating dangerous heat. Fortunately, you can specify specialized connection blocks for this exact scenario. These unique units allow you to mix Aluminum and Copper safely. They utilize specially plated internal contacts to separate the metals. Manufacturers also apply oxidation-inhibiting pastes inside the clamping zones. This design completely prevents galvanic corrosion over the lifespan of the machine. Always verify Al/Cu compatibility before mixing conductor types.
Selecting the right feed-through component represents an exercise in anticipation. You are anticipating future maintenance pain points rather than just completing a circuit. Smart engineers look ahead to solve space limitations before they happen. They address wire stress and poor accessibility before manufacturing ever begins. Proper planning here prevents expensive rework later.
Next, you should actively audit your current panel depth. Determine if side-entry push-in technology represents a viable spatial upgrade for your layouts. Additionally, always calculate your peak current loads against the strict 150% rule. Do this before you finalize any procurement lists. Safety margins protect your reputation and your hardware.
If you are handling high-current deployments, do not guess. Consult directly with a technical sales representative to verify your specifications. Request physical samples of heavy-duty Terminal Blocks for structural testing. Validating the physical strain in your own facility guarantees a bulletproof final assembly. You will deploy your next panel with complete confidence.
A: A feed-through block isolates the electrical signal from the mounting surface. It simply passes current straight through the housing. A grounding block intentionally connects the internal busbar directly to the metal DIN rail. This establishes a safe protective earth (PE) connection automatically.
A: Yes, but termination technology matters. Push-in technology handles solid or ferruled wires perfectly but struggles with bare stranded wire. Screw or lever-clamp blocks accept both solid and bare stranded wires safely. You must ensure the chosen block is rated for both wire types.
A: You must calculate pitch based on voltage ratings and industry standards. Higher voltages require larger pitch measurements to maintain safe clearance (through air) and creepage (along surfaces) distances. Check your local electrical codes to determine the exact required spacing for your operating voltage.
