Specifying a high current terminal block requires absolute precision. High-power interconnects leave zero margin for error. If you undersize these components, you risk thermal runaway. Equipment fails rapidly. Safety hazards multiply without warning. Selecting the correct interconnects determines the lifespan of your electrical panels. Poor choices lead to arcing and catastrophic meltdowns.
Standard blocks work fine for low-level control signals. They simply cannot handle severe industrial demands. High-current variants step in here. We use them specifically for industrial automation and power distribution. Heavy machinery relies on them to manage massive energy loads safely. Engineers and procurement teams need a reliable way to evaluate these components. You must eliminate electrical risks before installation. You want to ensure complete operational success.
This guide delivers a practical, evidence-based evaluation framework. It walks you through electrical baselines and material properties. You will learn exactly how to match the right component to harsh operating environments.
Current and Voltage Scaling: Selection must account for continuous current, peak loads, and required creepage/clearance distances to prevent arcing.
Thermal Management: Conductor material and housing plastics (e.g., UL 94 V-0) must be evaluated for heat dissipation and fire resistance under maximum load.
Mechanical Integrity: The operating environment (vibration, shock) dictates the connection mechanism (stud, screw, or spring-cage).
Compliance is Non-Negotiable: Validating UL, CSA, and IEC certifications ensures liability protection and system reliability.
Electrical baselines dictate every subsequent design choice. You must define your operational parameters before reviewing product catalogs. Miscalculating these constraints leads directly to field failures.
Nominal operating current represents everyday power demands. Peak surge current occurs during sudden events. Motor startups generate massive, temporary energy spikes. Fault conditions also push limits. You cannot size your components based on nominal current alone. You must frame the selection of a high amperage terminal block around the application’s absolute maximums. Overloading a block melts the housing. It destroys adjacent wiring. Always calculate a safety margin above your highest expected peak load.
Current-carrying capacity drops as temperatures rise. Manufacturers provide derating curves to illustrate this relationship. You must consult these charts during the design phase. Ambient temperature inside an enclosed control panel gets extremely hot. A component rated for 150 amps at room temperature might only handle 100 amps at 60°C. You must map your actual operating environment against these curves. Failing to account for ambient heat guarantees overheating.
High voltages require physical space between conductive parts. Engineers measure two distinct spatial separations. Clearance is the shortest distance through the air. Creepage is the shortest distance along the insulating surface. You must maintain these distances to prevent electrical arcing. Arcing causes fires. High-voltage and high-current environments demand strict adherence to clearance rules. Environmental pollution makes this worse. Dust and moisture create conductive paths on surfaces. You must select blocks designed to maintain proper creepage under your specific environmental conditions.
Conductors come in exact sizes. You measure them using American Wire Gauge (AWG) or metric square millimeters. The clamping mechanism must accommodate your specific wire size perfectly. Forcing a large wire into a small clamp breaks copper strands. It reduces the effective cross-section. This creates high resistance. Clamping a small wire in a massive unit prevents a tight grip. Wires pull out easily. Always verify the documented wire range. Ensure it matches your stranded or solid conductors exactly.
Materials determine performance under stress. Cheap materials degrade quickly. Premium materials ensure long-term stability. You must scrutinize the metals and plastics inside your interconnects.
The internal metal conducts the energy. Copper alloys offer superior conductivity. They generate very little heat under heavy loads. Some manufacturers use brass or cheaper alloys. These alternatives introduce electrical resistance. Resistance generates dangerous heat. You must also evaluate the surface plating. Bare copper oxidizes rapidly. Plating prevents this corrosion. Tin plating offers excellent general protection. Silver plating provides superior performance for extreme current applications. You should demand high-grade copper alloys for any serious power distribution task.
Material Type | Conductivity Level | Corrosion Resistance | Typical Application |
|---|---|---|---|
Bare Brass | Low to Moderate | Poor | Low-demand indoor panels |
Tin-Plated Copper | High | Excellent | Standard industrial automation |
Silver-Plated Copper | Very High | Excellent | Extreme ampacity and heavy machinery |
The plastic housing protects the user and the equipment. Frame your evaluation around thermal stability. High-current connections get hot. The plastic must withstand this heat without melting or off-gassing. Look for Polyamide (PA) or Polycarbonate (PC). These materials offer immense structural strength. Flammability ratings matter most. Require a mandatory UL 94 V-0 rating. A V-0 rating means the plastic stops burning within 10 seconds after removing a flame. It prevents flaming drips. Never compromise on housing plastics.
Passive cooling prevents localized hot spots. Superior designs incorporate physical block spacing. They use internal geometry to channel heat away from the core. Look for integrated heat sinks or cooling fins on massive units. Proper airflow around the connection points keeps temperatures manageable. You should avoid densely packing blocks if they lack adequate heat dissipation features. Evaluate the physical shape of the block to ensure it breathes naturally inside the cabinet.
The physical clamping method determines mechanical integrity. Operating environments dictate this choice. Vibration, shock, and installation speed all play a role.
Engineers primarily choose between screws and studs for heavy power.

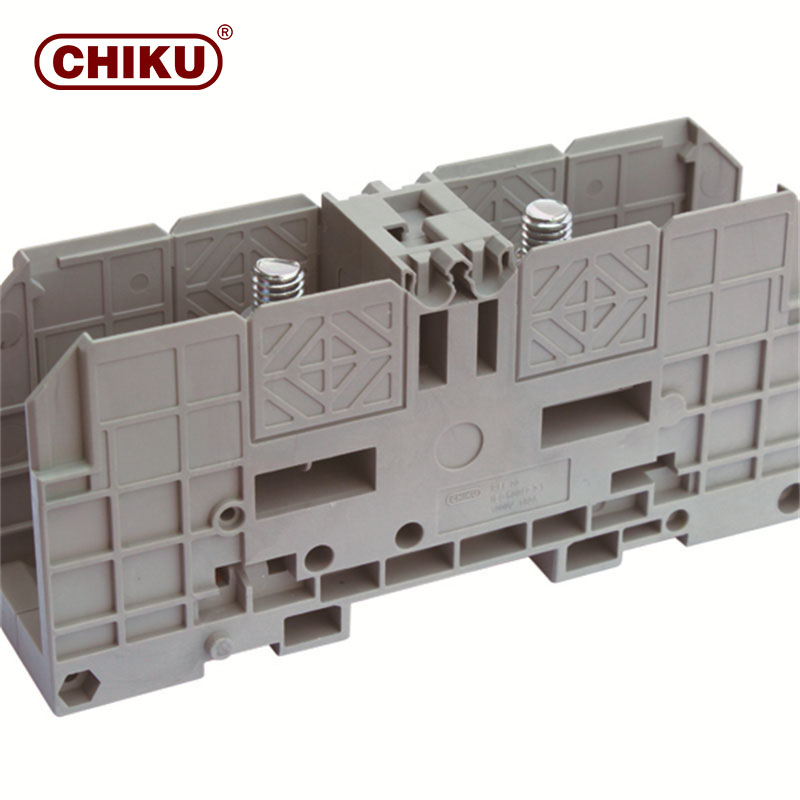

Stud Terminals: These utilize threaded posts and heavy-duty nuts. They represent the best choice for heavy-duty ring lugs. You use them for extreme current applications. They offer a highly secure, gas-tight connection. They require more installation time. You must manually slide the ring lug over the post and tighten the nut.
Screw Terminals: These serve as the industry standard. They offer broad compatibility with bare wires and ferrules. They install quickly. However, they require precise torque specifications. Under-torquing creates loose, high-resistance joints. Over-torquing strips the threads and crushes the wire. You must enforce calibrated tools during installation to prevent loosening over time.
Vibration destroys static connections. Heavy transport, railway systems, and stamping presses generate constant shaking. You should evaluate spring-loaded mechanisms for these vibration-heavy environments. A spring-cage applies constant clamping force against the wire. If the wire settles or the machine vibrates, the spring adjusts automatically. It never backs out. Push-in variants offer rapid, tool-free installation for solid wires or ferruled conductors. They reduce assembly time significantly while ensuring fail-safe tension.
Think of your interconnect as a mechanical anchor. A terminal block connector acts as a vital link in your mechanical chain. You must assess it against expected shock profiles. Consider pull-out forces. Heavy cables exert massive strain on the clamping unit. If the cable hangs or bends sharply, it tries to pry itself loose. Ensure the mounting feet lock firmly onto the DIN rail or panel chassis. Weak mounting feet snap under heavy cable tension.
Certifications protect your operation from liability. They prove the component performs as advertised. You cannot ignore regulatory compliance.
Procurement teams must look for specific geographic standards. North American markets require UL 1059 compliance. European markets rely on IEC 60947-7-1. Canadian deployments need CSA equivalents. These standards dictate testing procedures for temperature rise, dielectric strength, and mechanical durability. A component lacking these marks introduces massive legal and operational risks. Always align your component choices with the destination market of your final machine.
Marketing claims hold no legal weight. Brochures often exaggerate capabilities. You must advise buyers to request actual certification documentation. Check the UL file number directly. Verify the IEC test reports. Ensuring your heavy current power terminal meets specific industry regulations keeps you protected. Do not accept a generic "built to CE standards" claim. Demand the paperwork. Authentic manufacturers supply these documents instantly upon request.
Hazardous materials restrict market access. Ensure strict RoHS compliance. RoHS eliminates lead, cadmium, and other dangerous substances from the manufacturing process. Also, consider ingress protection. While panels provide primary protection, specific IP ratings matter. If blocks face exposure to dust or moisture, look for IP20 finger-safe designs. They protect technicians from accidental shocks. They also keep larger debris out of the clamping mechanism.
Components do not operate in a vacuum. They interact with tools, accessories, and panel layouts. You must evaluate the holistic installation process.
A bare connection often proves insufficient. Evaluate compatibility with wire ferrules. Cold-pressed ferrules bind stranded wires together. They prevent stray strands from causing short circuits. Check for compatible end covers. These plates isolate live components at the end of a row. Assess jumper systems. Plug-in jumpers distribute power across multiple blocks rapidly. Partition plates provide visual and electrical separation between different voltage zones. A robust accessory ecosystem simplifies complex builds.
Installation methods dictate reliability. Uncalibrated tools ruin perfect components. Ensure the chosen block aligns with your assembly team’s existing standard operating procedures. If you specify a stud terminal, your team needs heavy-duty crimpers for large ring lugs. If you specify screw clamps, they need calibrated torque screwdrivers. Mismatched tooling causes inconsistent joints. Standardize your connection types to minimize the variety of tools required on the shop floor.
High-current connections demand physical volume. You must provide a framework for balancing their physical footprint. Standard DIN rail enclosures offer limited real estate. Thick cables require generous bending radii. You cannot jam heavy wires into tight corners. Plan your cabinet density carefully. Leave adequate spacing between rows for heat dissipation and cable routing. Sometimes, a tiered or angled block saves lateral space while maintaining safe separation.
Selecting a high-current block requires a precise balance. You must weigh electrical capacity, thermal safety, and mechanical reliability equally. Ignoring one aspect compromises the entire system. Surges destroy undersized conductors. Poor plastics melt under thermal stress. Vibration shakes loose improper clamping mechanisms. You must enforce strict compliance with global safety standards.
Decision-makers need to take immediate action. Audit your current panel requirements today. Map your continuous loads and peak surges. Download technical specification sheets from trusted manufacturers. Compare their derating curves against your ambient temperatures. Finally, request physical samples for bench testing. Holding the component and testing its clamping force reveals true manufacturing quality. Protect your infrastructure by demanding excellence at every connection point.
A: High current blocks feature significantly larger conductor mass. They utilize premium copper alloys to manage extreme ampacity thresholds without overheating. They also incorporate wider spacing and thicker insulation to maintain safe creepage distances under heavy loads. Standard blocks primarily handle low-amperage control signals.
A: Yes. You must use a calibrated torque screwdriver. Incorrect torque ruins connections. Under-torquing leaves the wire loose, creating high resistance joints that overheat and cause fires. Over-torquing crushes the copper strands and strips the internal threads. Always follow the manufacturer's exact torque specifications.
A: Ambient heat reduces a block's ability to carry current. Manufacturers plot this behavior on thermal derating curves. If enclosed electrical panels get hot, the block cannot dissipate its own internal heat effectively. You must lower the maximum allowed current to prevent the housing plastics from melting.
A: Generally, no. Clamping wires of different diameters in one unit creates uneven pressure. The clamp secures the larger wire while leaving the smaller wire loose. This creates severe safety risks. Always check manufacturer guidelines. Most strictly prohibit multiple unferruled wires of varying sizes in one clamping unit.
